Analyzing waveforms Set up I2C search parameters
To use
For information on the controls, click the buttons.
Behavior

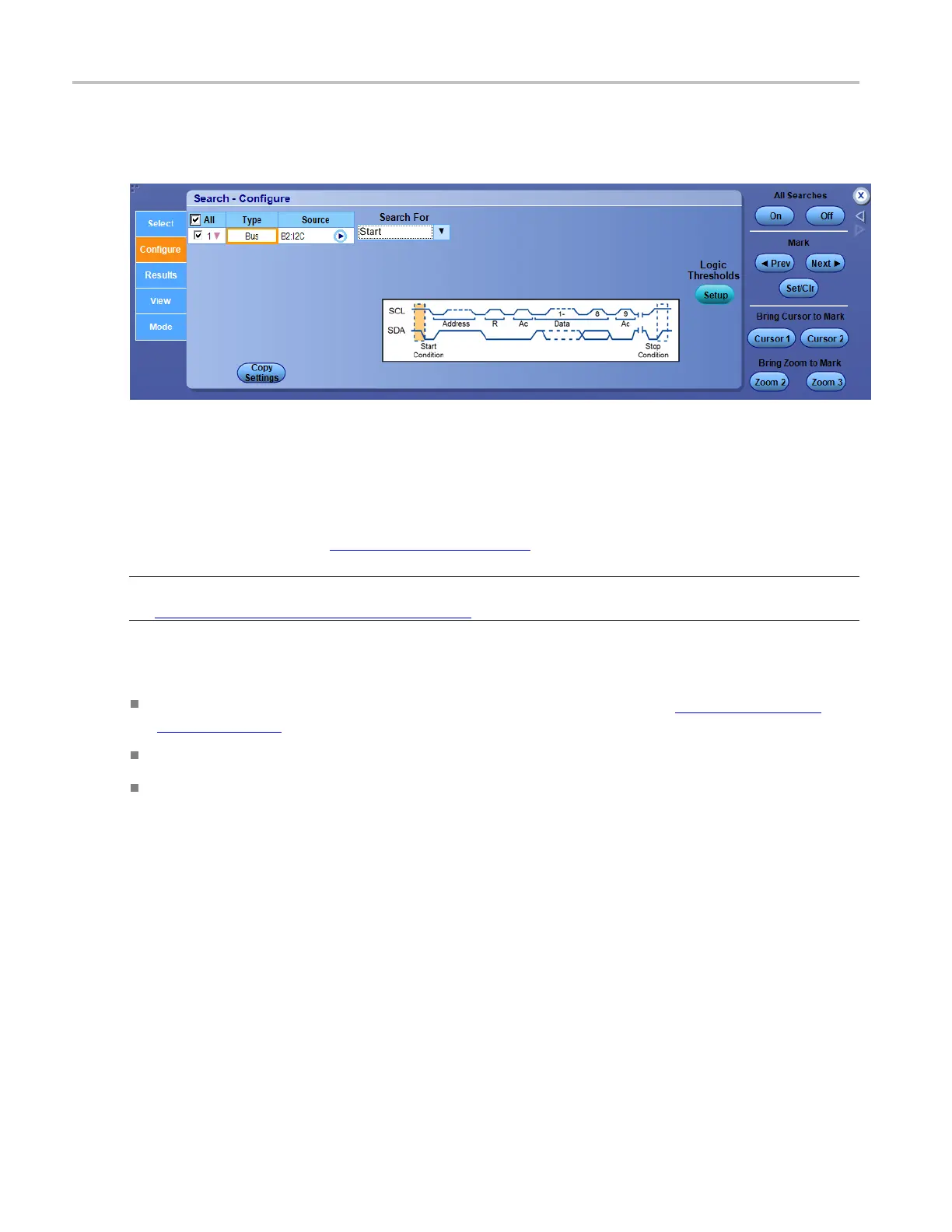

Clicking an entry in the Type column activates the individual search controls, similar to the one shown
above. T
hese controls vary depending on the search Type. Setting the search conditions is similar to
setting the parameters for an Event Trigger
(see page 386).
NOTE. No information will be displayed in this window until you specify at least one search Type in
the Search Select Control Window
(see page 300).
To use
Click the Source box and select the bus number or name from the window.Bus Search Selection
List (see page 98)
Select the type of bus cycle or a ctivity to search for from the Search For drop-down list.
For some Search For selections, you must set additional fields to define other parameters such as
for a Data.
326 DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series
