Analyzing waveforms Set up Ethernet search parameters

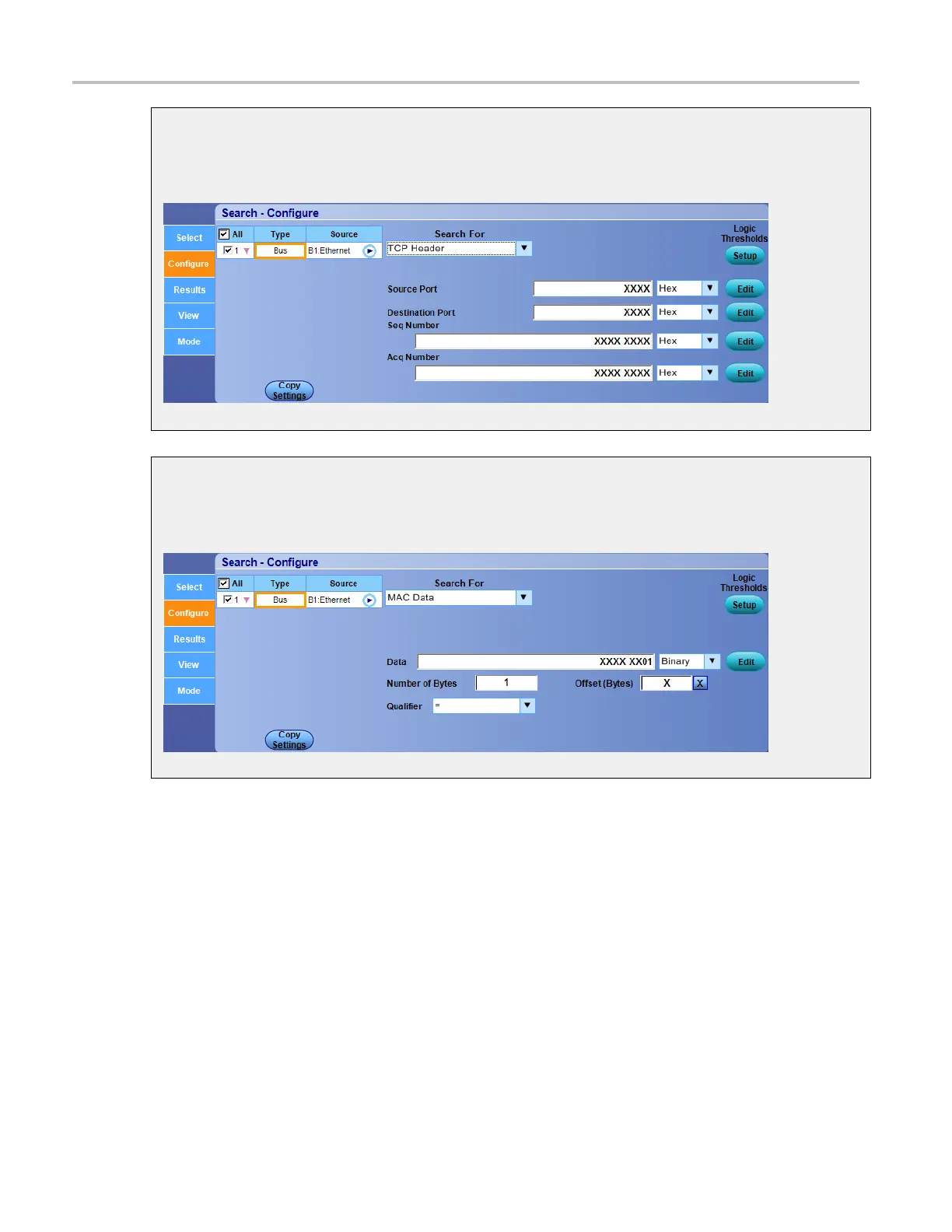

TCP header

ThedatatypeoptionsavailableinSearchForTCPHeader are Source Port, Destination Port, Seq

Number, and Ac

q Number.

MAC data

ThedatatypeoptionsavailableinSearchForMAC Data are Data, Number of Bytes, O ffset, and

Qualiﬁer.

364 DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series
