MyScope setups Use a MyScope control window
Trigger controls
Trigger Type and Trigger Sequence controls have a setup button that is automatically included with the
controls. Use this setup control window to set the parameters for the selected trigger type.
The Trigger Sequence controls represent the right half of the Trigger Setup control window under the A ->
B Event tab. Use this setup window to set the parameters for the trigger sequence.
Cursor cont
rols

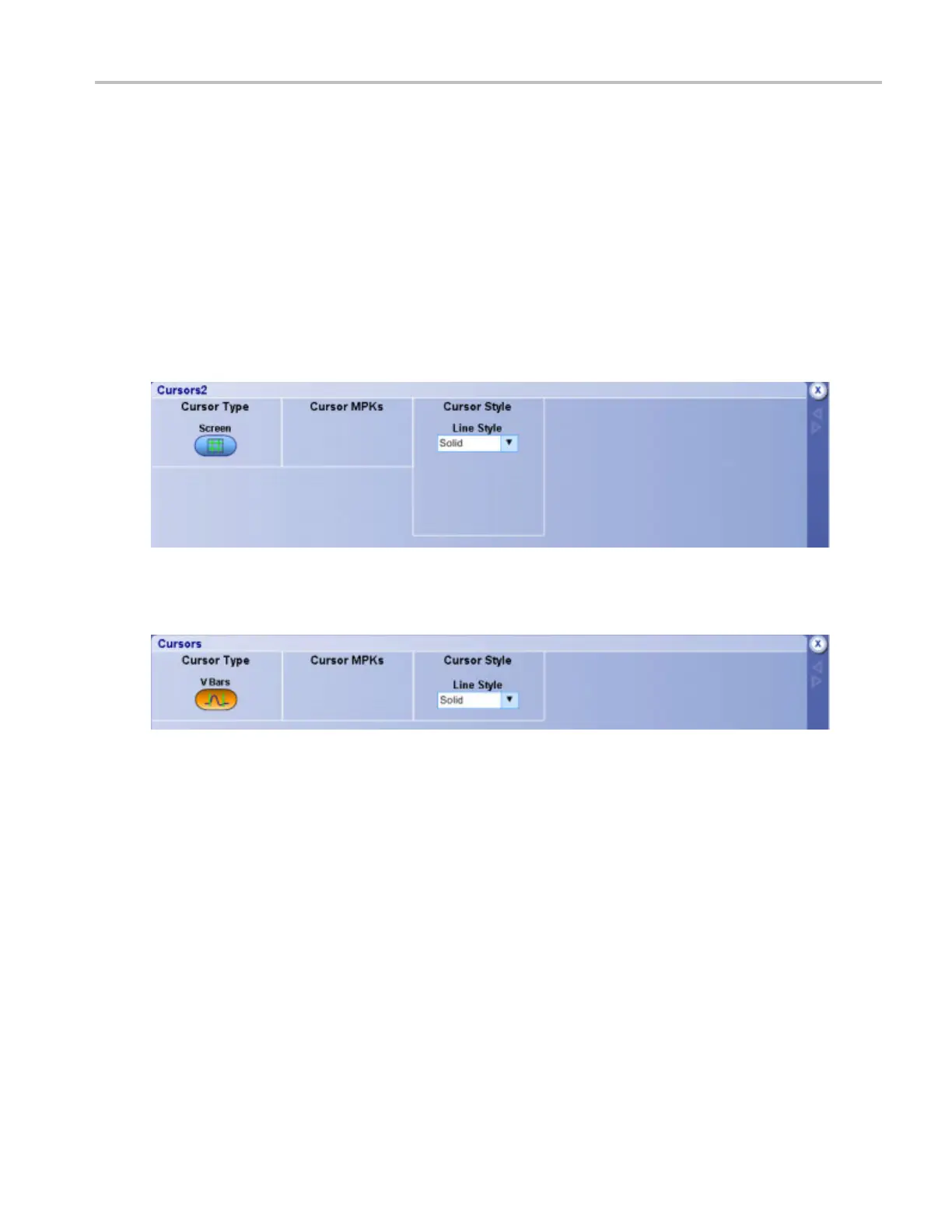

The Cursor Multipurpose Knob (MPK) and style controls are available but what displays in your MyScope
control wi
ndow will depend on what type of cursor you select. For example if you select Screen cursors,
then Cursor MPKs controls and Cursor Style controls display as shown in the following graphic.
However if you select V Bars, then Cursor MPKs controls are not available and the Cursor Style controls
change as shown below.
Mea
sure controls
Measurement controls always include a Next and Clear button. The Clear button clears all measurements
on a
ll channels. The Next button advances the Source to the next active channel and assigns the same
measurements to the next channel as were assigned to the previous channel. This is a quick way to
assign the same measurements to multiple channels.
Each page of the measurement controls can hold up to twelve measurements.
Mask con trols
The Mask Test controls act as shortcuts to the Mask Test setup control windows.
DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 381
