Tektronix DPO5000 Series User Manual

Trigger setups Select the trigger type

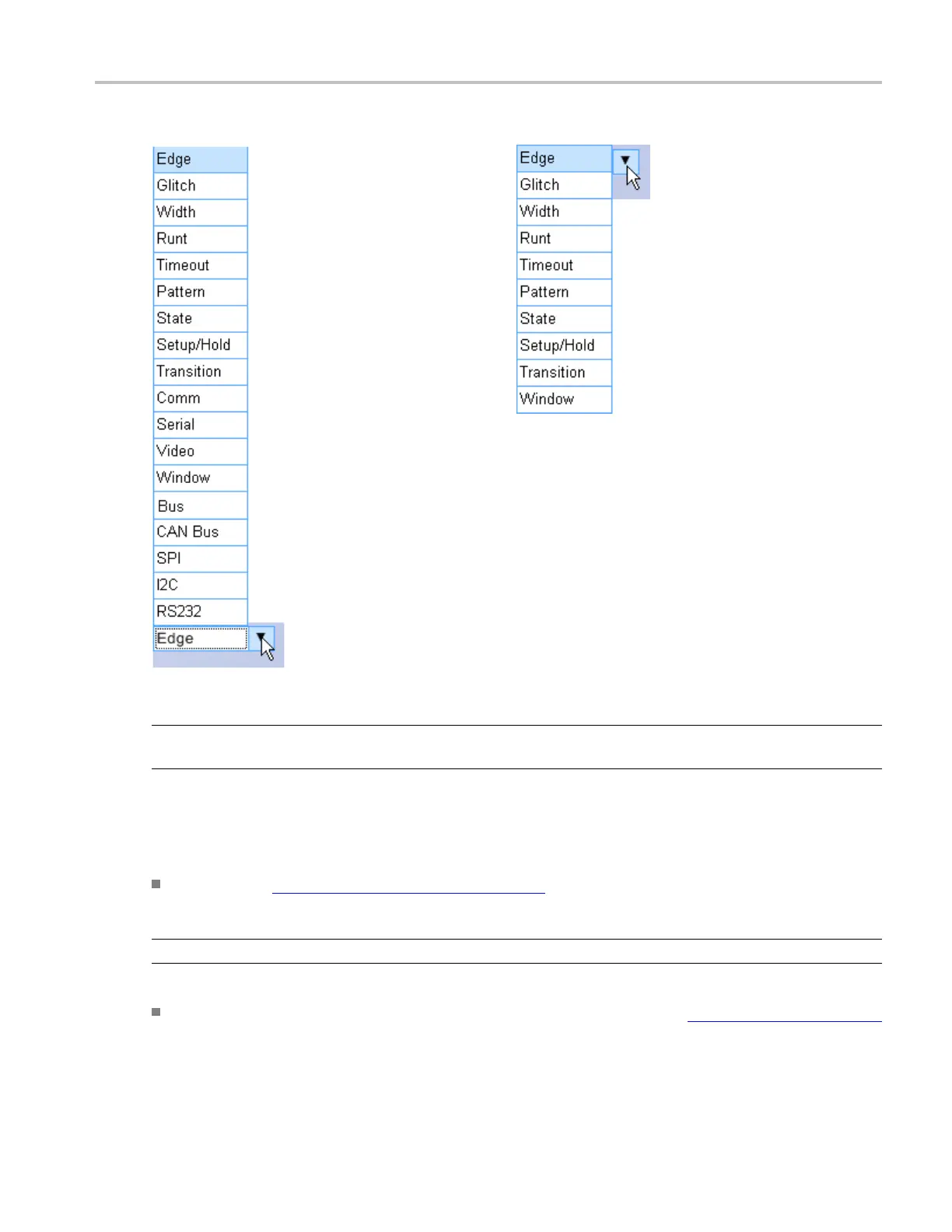

A Trigger type B Trigger type
xxx
NOTE. This online help documents features and options available for several instrument models. Your
instrument model may not have every trigger type listed above, depending on its configuration.
Behav
ior
The instrument provides the following trigger type categories.
Comm.TheCommunication triggers (see page 421) are designed to work with communication
masks and standards.
NOT
E. Comm trigger on B Events is not available on MSO/DPO5000 Series instruments.
Edge triggers. This is the most commonly u sed trigger type. You can use Edge triggers (see page 423)
w
ith analog and digital signals. Edge triggers a re available on both the Main and Delayed triggers.
DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 387
