About Tektronix oscilloscopes Using Tek LXI

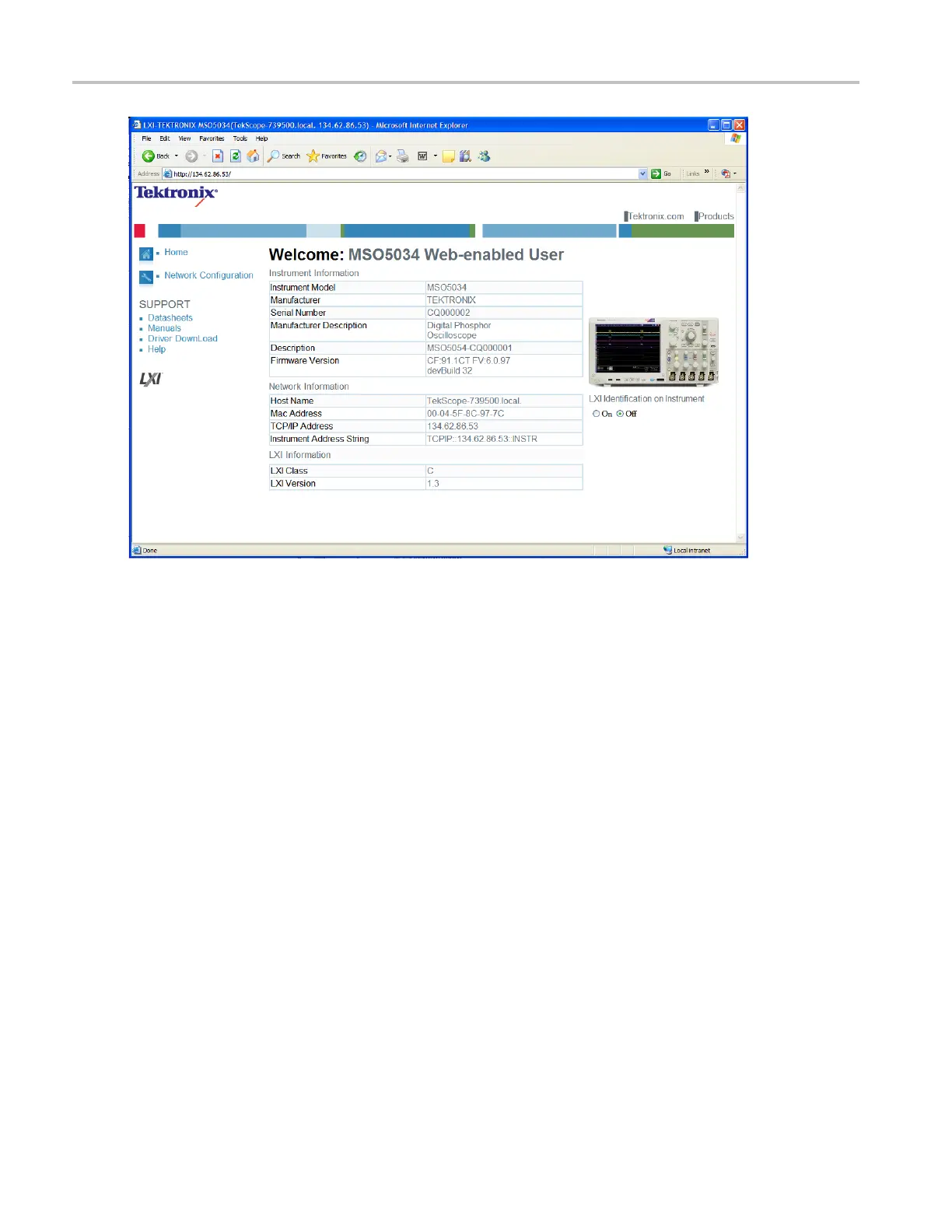

To display network conﬁguration information, click on Network Conﬁguration. The Web page displays the

network conﬁguration, and allows you to submit changes to some of the instrument conﬁguration. Click

on the H

elp SUPPORT link to see help on the conﬁguration information.
