Tektronix DPO5000 Series User Manual

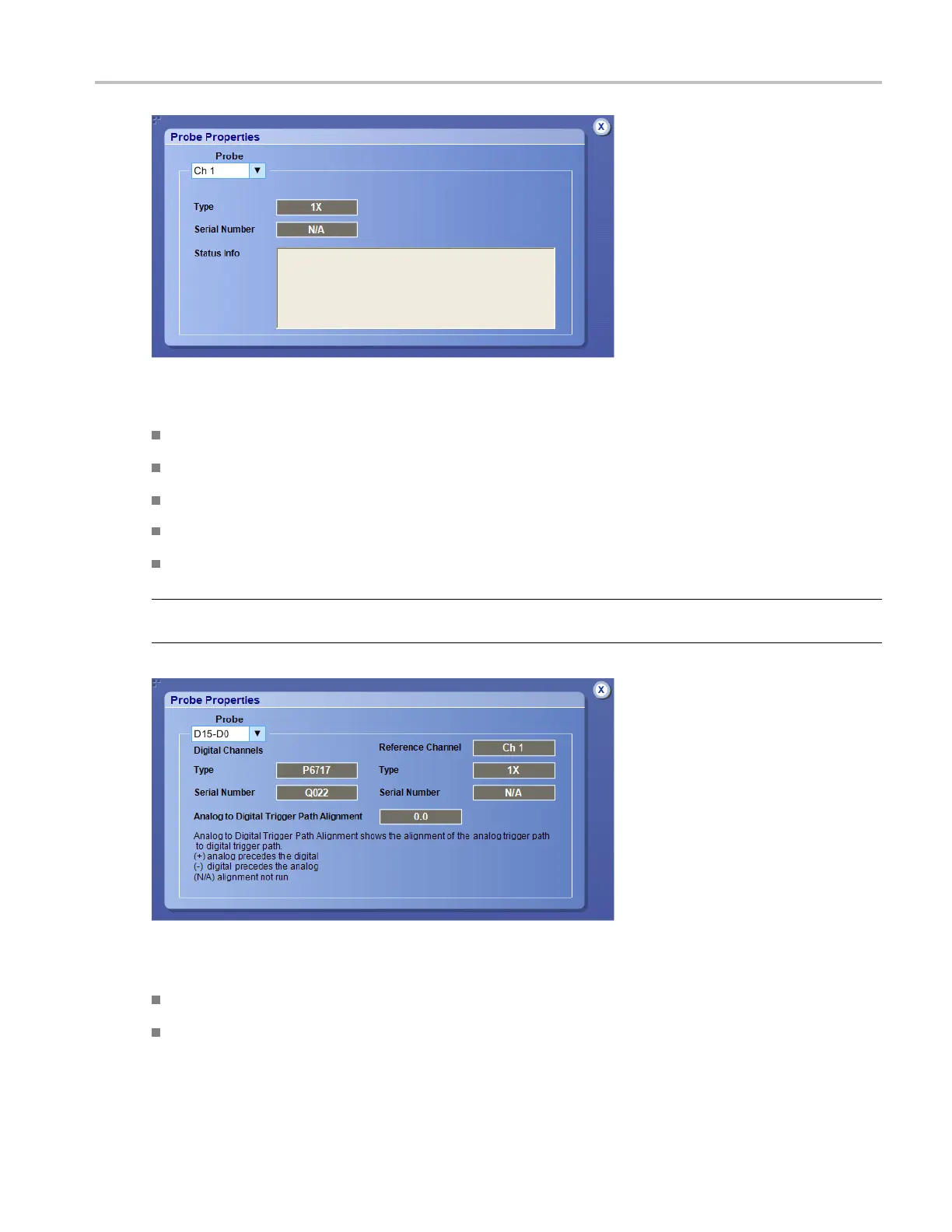

Vertical Setups Probe Properties
The Probe Properties dialog includes the following information for logic p robes:
Type of logic probe connected
Serial number of the logic probe
Analog channel selected as the Reference Channel
Type of p
robe connected to the Reference Channel
Status of the Analog to Digital Trigger Path Alignment routine
NOTE. T
he instrument requires the Logic Probe Deskew Fixture (Tektronix part number 067-2083-XX) to
run the Analog to Digital Trigger Path Alignment routine.
The instrument displays the following information in the Analog to Digital Trigger Path Alignment field:
N
/A means that the trigger path alignment routine has not been run
Numeric value for the amount of time the instrument needs to skew the channel to align the logic
trigger path to the reference channel
DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 509
