Utilities Return the Floating License for the Installed Option(s)

NOTE. Ensure that the Exit Key ﬁle is uploaded to the Online Floating License Management System on

http://www.tektronix.com/ﬂoatinglicense

to access the ﬂoating license again.

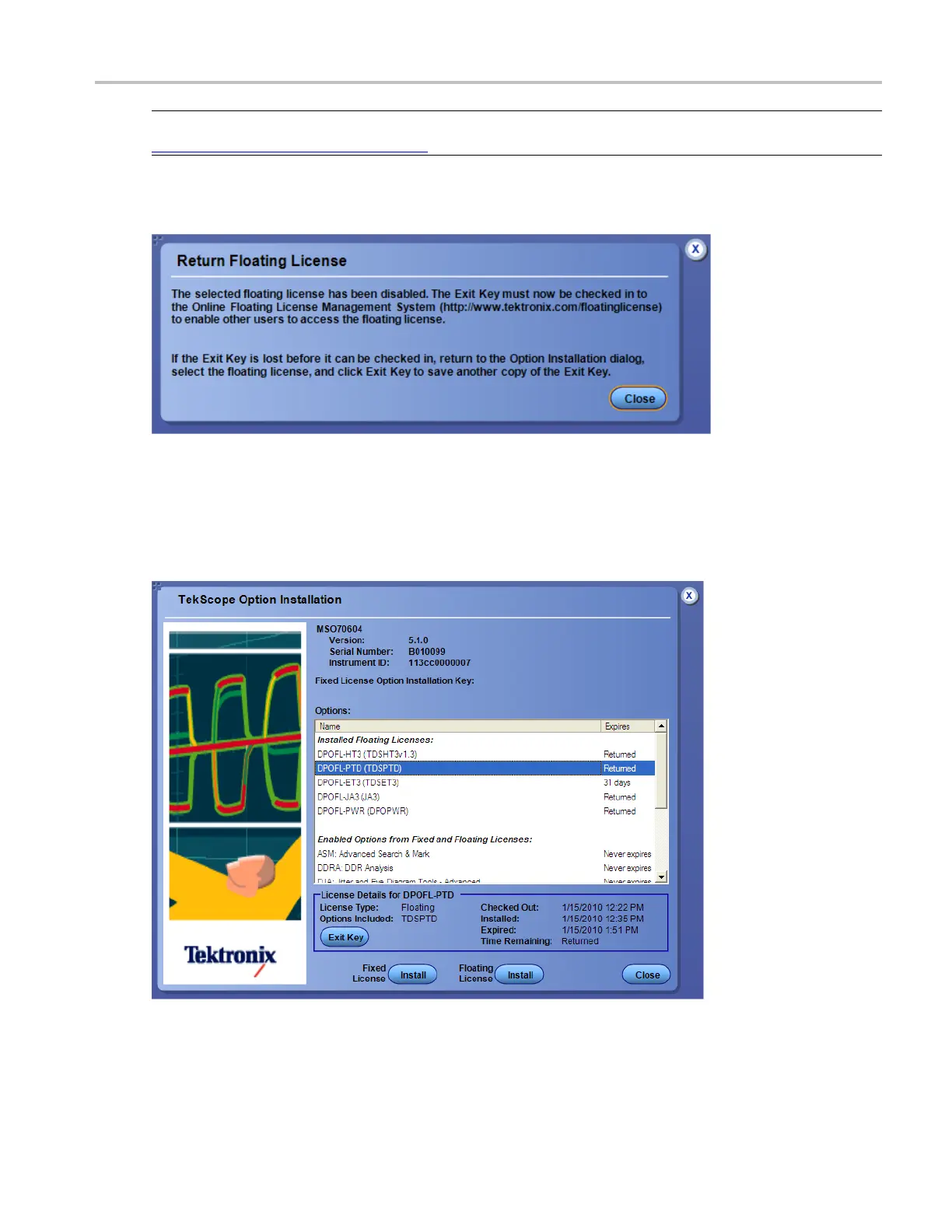

5. The following dialog box appears on completing the return of a ﬂoating license. Click Close.

6. A dialog box appears indicating that the selected Option is disabled. Reboot the instrument for the

changes to take effect.

For example, after returning the ﬂoating license for DPOFL-PTD (TDSTPTD), the Tekscope Option

Installation dialog box appears as follows:

DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 569
