About Tektronix oscilloscopes Changing control settings

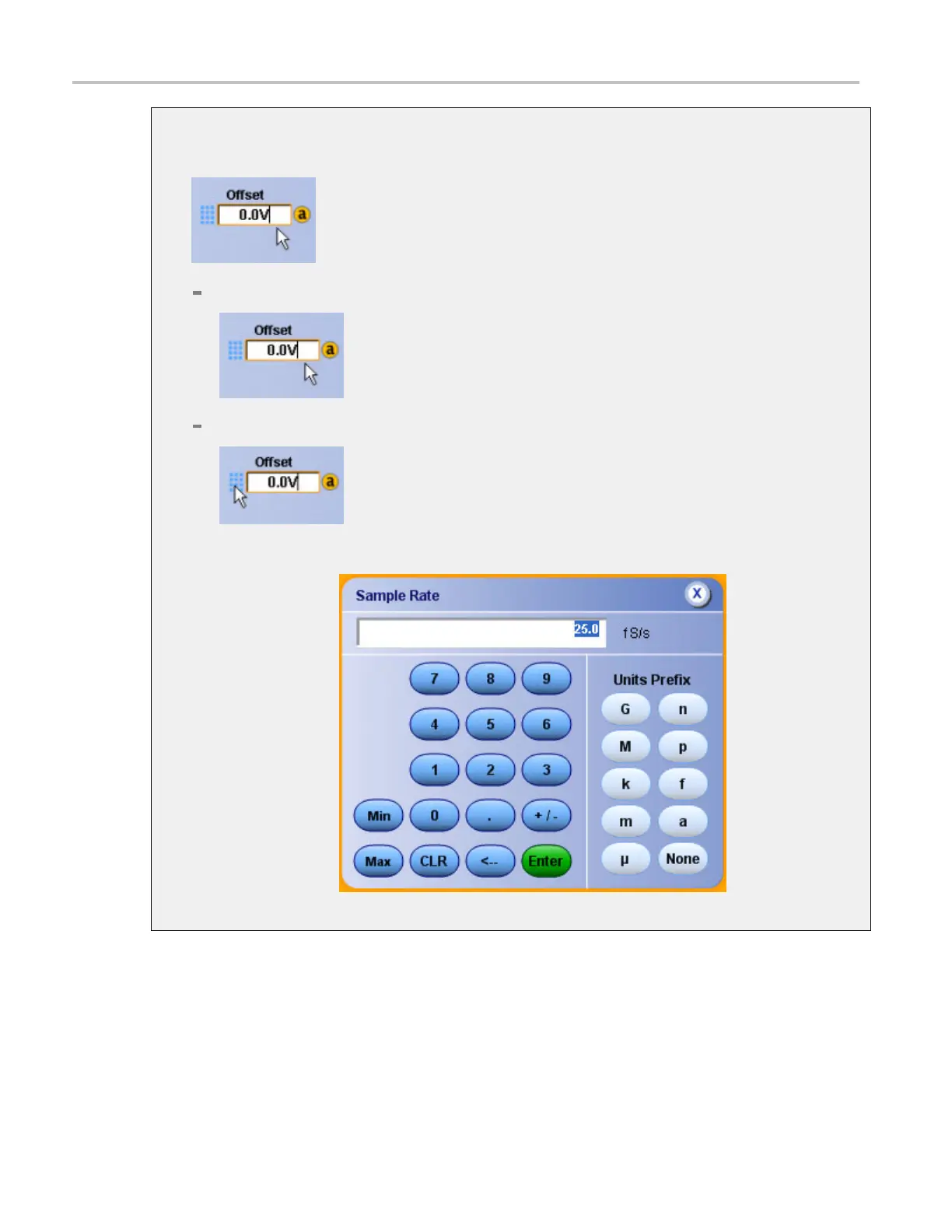

Pop-up keypad

1. Double click in a data entry box, or:

Click in a da

ta entry box.

Click on the keypad icon.

2. Use the pop-up keypad to enter data.

Sample Rate Keypad.

3. Click the Enter Button.

40 DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series
