Tektronix DPO5000 Series User Manual

Oscilloscope R eference Bus pattern condition
Bus pattern condition
For the supported instruments, use the control to select how many occurrences of the pattern to detect
before the instrument triggers.
Bus selection
For the supported instruments, use the control to select the Bus on which to trigger from the list of bus
setups.
Bus time condition
For the supported instruments, click the Time entry box and enter a value with the keypad or use the
multipurpose knobs to select a value.
Trigger l ogic state condition
For various trigger types, in the Trigger if Logic State drop-down list, select True to trigger the instrument
when the logic patterns are true. Select False to trigger the instrument when the logic patterns are false.

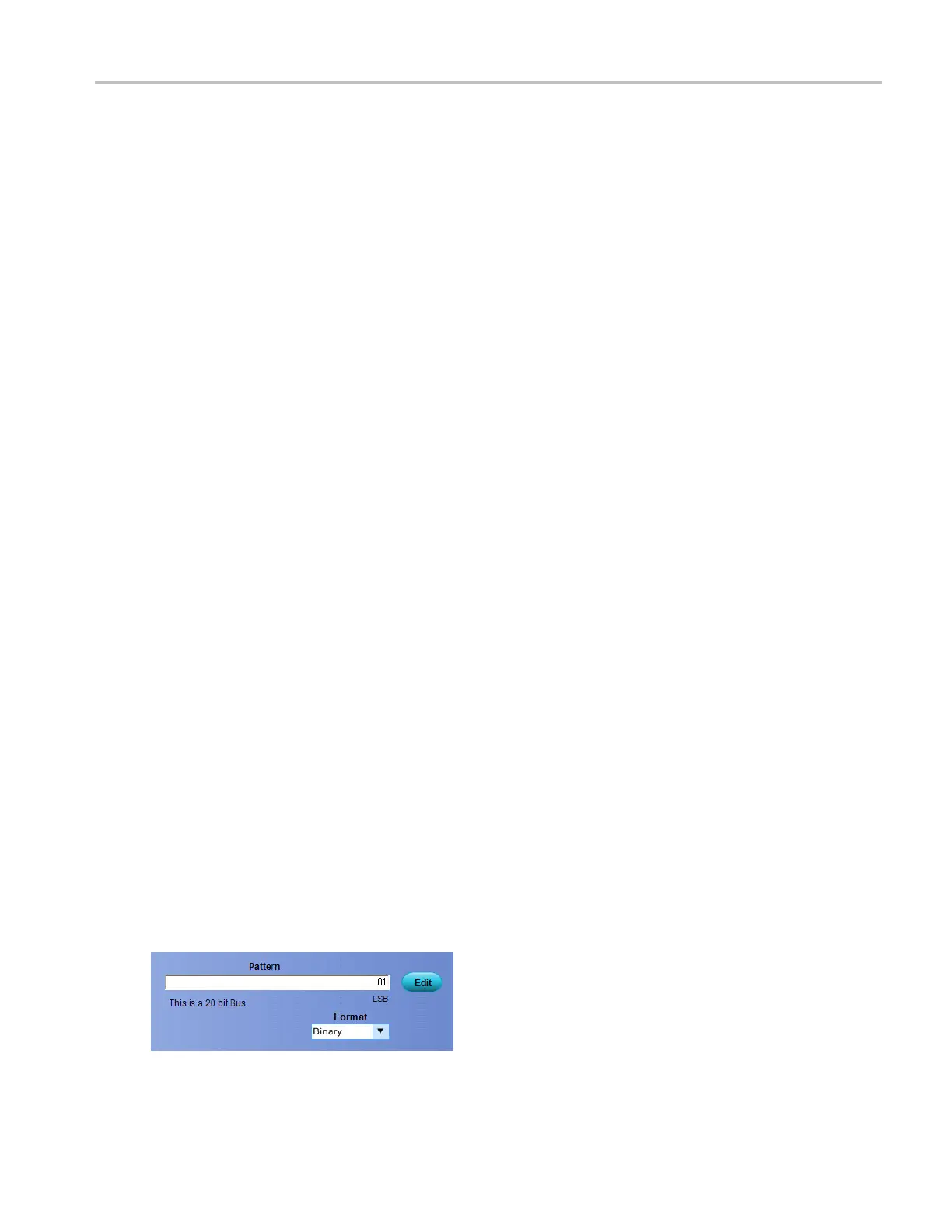

Set the parallel bus pattern
For the supported instruments, use the controls to set up the Parallel Bus parameters. Click the Edit button
to access the Pattern Editor dialog box.
For information on the Pattern Editor dialog box, click the buttons.
DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 937
