Tektronix DPO5000 Series

To Next Page

To Previous Page

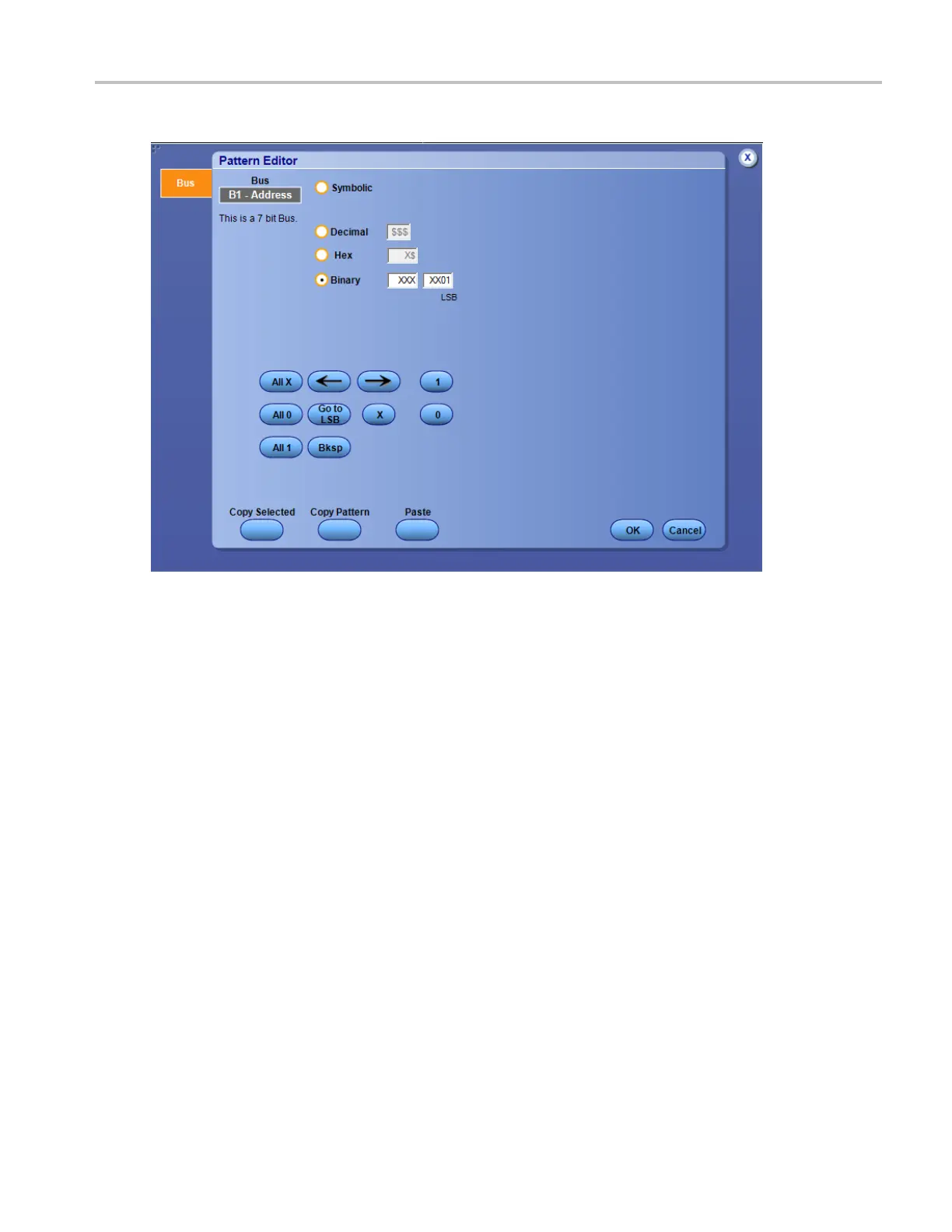

Oscilloscope Reference Bus Pattern Editor (Bus tab)

Select a bus and click Edit button.

For serial bus

Select a bus SPI (with Trigger On set to Data ), RS232 (with Trigger On set to Data), I2C (with Trigger On

set to Data), or USB (with Trigger On set to Special Packet, Special Type set to SPLIT 1000, and select Hub

DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 941

Main Page

Default Chapter5
