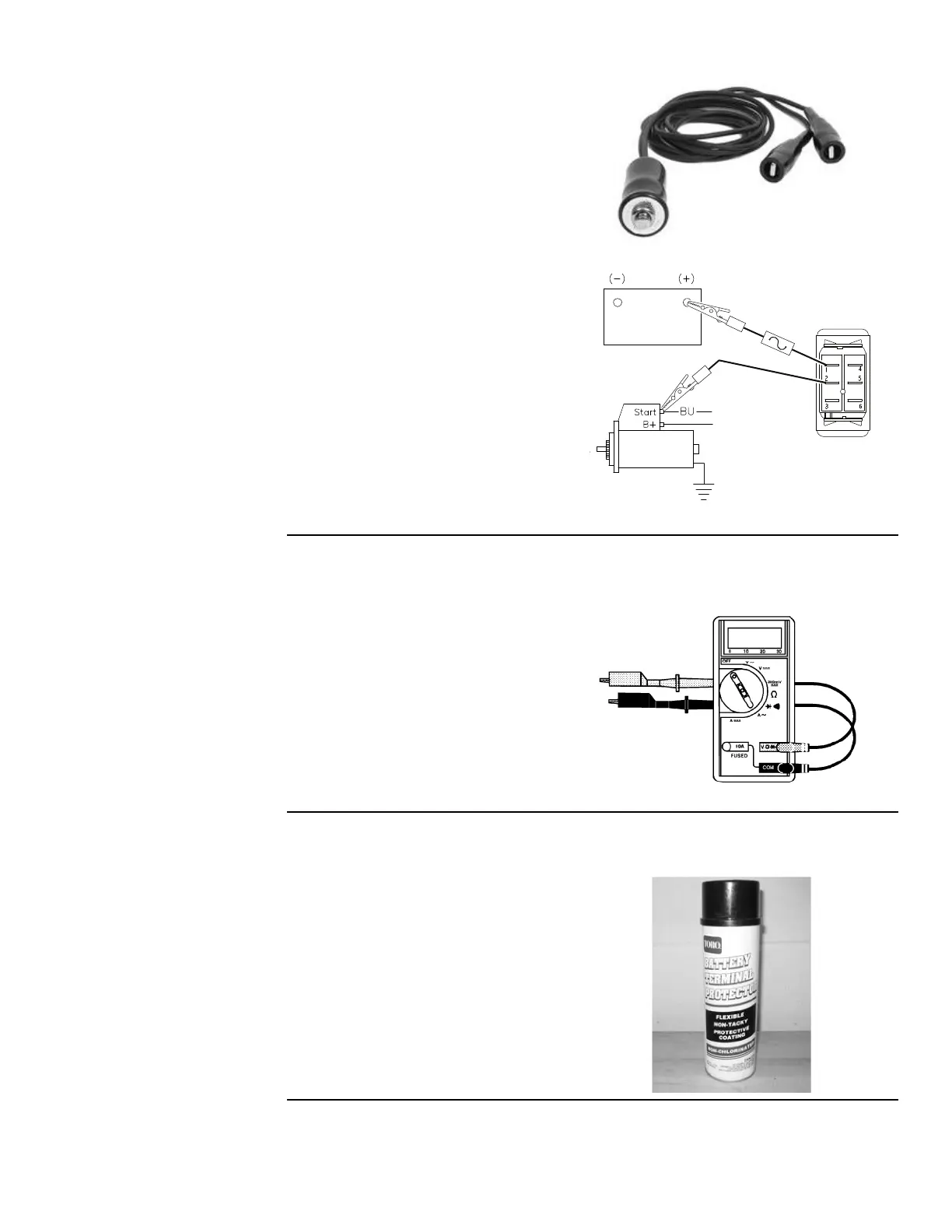

RemoteStarterSwitch
Afterushingthehydraulicsystemor
replacingahydrauliccomponent(e.g.
gearpump,pistonpump,drivemotor),itis
necessarytoprimethehydraulicpumps.
Aremotestarterswitchcanbeusedfor
thispurpose.Aremotestarterswitch
canbepurchasedlocallyorfabricatedas
follows.
IMPORTANT :Whenusinga
remotestarterswitch,itishighly
recommendedtoincludea20amp
in−linefusebetweenthebatteryand
switchconnectorforcircuitprotection.
Aremotestaterswitchcanalsobe
constructedusingToroswitch#106−2027,
alengthof14gaugewire,a20amp
in−linefuse,two(2)alligatorclipsand
necessaryconnectors.Connectingthe
wiretoswitchterminals1and2willallow
themomentaryswitchcontactstobeused
fortheremotestarterswitch.
Note:Forinformationonusingtheremote
starterswitchtoprimethehydraulic
pumps.
RemoteStarterSwitch(purchased)
RemoteStarterSwitch(fabricated)
Multimeter
Obtainthistoollocally
Themetercantesttheelectrical
componentsandcircuitsforcurrent,
resistance,orvoltage.
Note:Useadigitalmultimeterwhen
testingtheelectricalcircuits.Thehigh
impedance(internalresistance)ofadigital
meterinthevoltagemodeensuresthat
theexcesscurrentisnotallowedthrough
themeter.Thisexcesscurrentcan
damagethecircuitsthatarenotdesigned
tocarryit.
BatteryTerminalProtector
ToroPartNo.107-0392
Usethisaerosolsprayonthebattery
terminals,ringterminals,andforkterminals
toreducecorrosionproblems.Applythe
terminalprotectortotheconnectionafter
yousecurethebatterycable,ringterminal,
orforkterminal.
Groundsmaster
®
5900&5910
Page2–19
SpecicationsandMaintenance:SpecialTools
16227SLRevB
