DriveBeltIdlerAssemblyInstallation(Figure328)(continued)

4.Usea⅜”or½”driveratchetorbreakerbartorelieveidlerpulleytension

andinstalldrivebelt.Makesurethatidlerpulleyappliestensionagainstthe

backsideofthebelt.

g299399

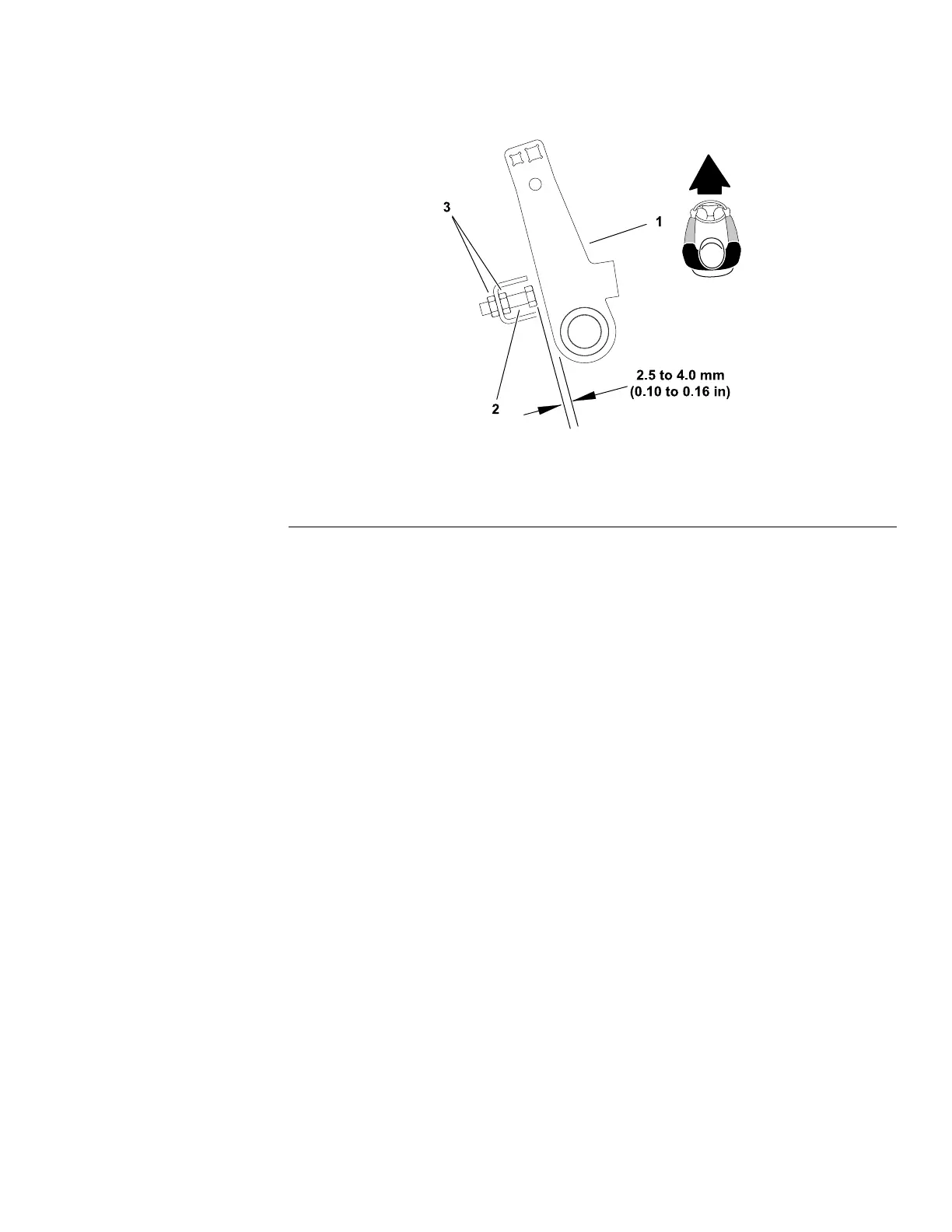

Figure330

1.Highidlerarm3.Jamnut

2.Stopbolt

5.Onfrontdeck,makesurethatclearancebetweenlowerbelt(center)idler

armandstopboltheadis2.5to4.0mm(0.10to0.16in)(Figure330).Adjust

asnecessary.

6.Installalldeckcoverstocuttingdeck.

Groundsmaster

5900&5910

Page8–13
