BladeSpindles

g299689

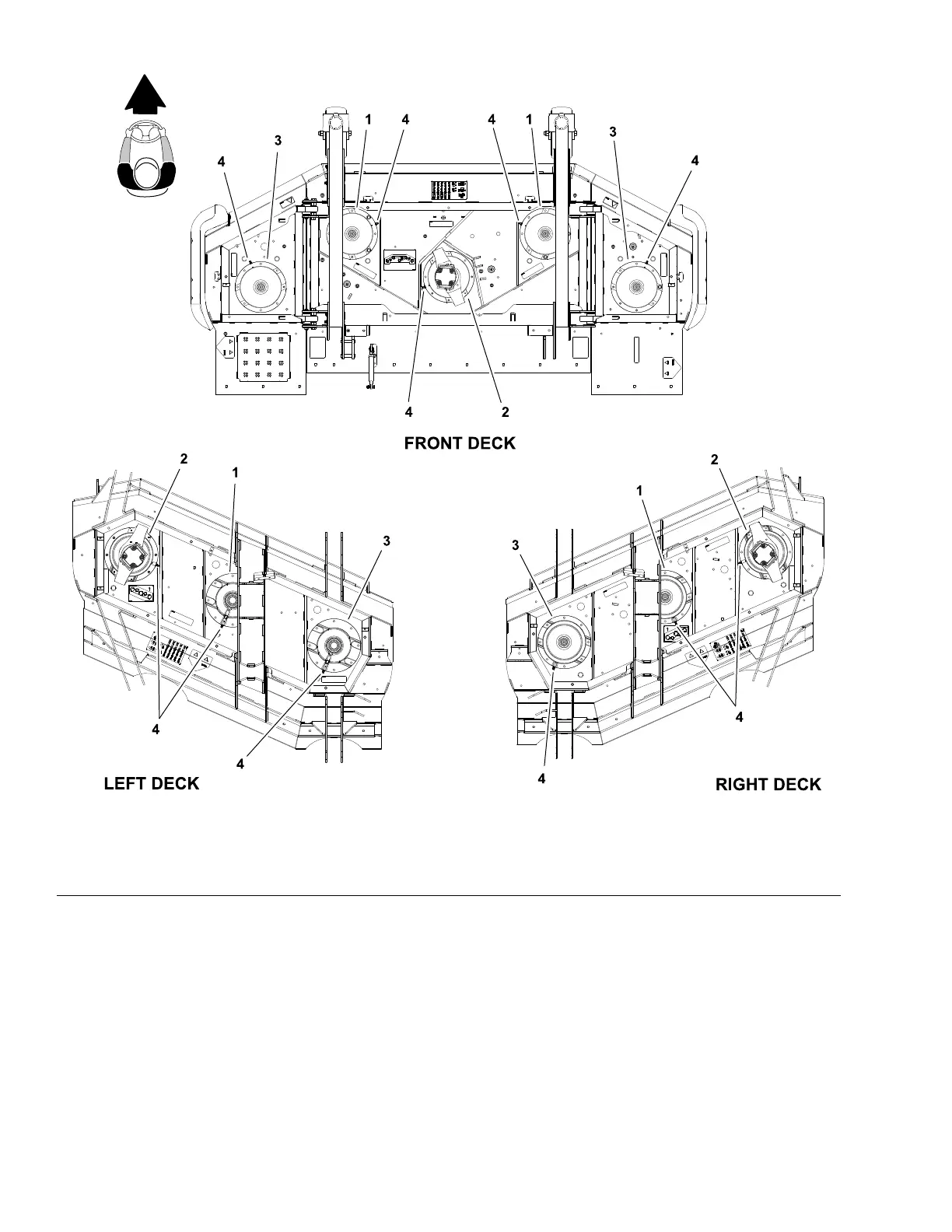

Figure331

1.Drivenspindle(doublepulley)3.Drivenspindle(highpulley)

2.Drivespindle

4.Greasetting

BladeSpindleRemoval

1.Parkmachineonalevelsurface,lowercuttingdecks,stopengineand

removekeyfromthekeyswitch.

2.Removecoversfromcuttingdecktoallowaccesstobladespindle.

3.Ifdrivespindleistobeserviced,recordmotororientationandremove

hydraulicmotorfromcuttingdeck.SeeCuttingDeckMotor(page5–118)for

additionalinformation.Positionmotorawayfromspindle.

4.Usea⅜”or½”driveratchetorbreakerbartorelieveidlerpulleytensionand

removedrivebelt(s)fromspindletobeserviced.

CuttingDecks:ServiceandRepairs

Page8–14

Groundsmaster

5900&5910

16227SLRevB
