BladeSpindleRemoval(continued)
5.Starttheengineandraisethecuttingdeck.Stopengineandremovekey
fromthekeyswitch.Latchorblockupthecuttingdecksoitcannotlower
accidentally.

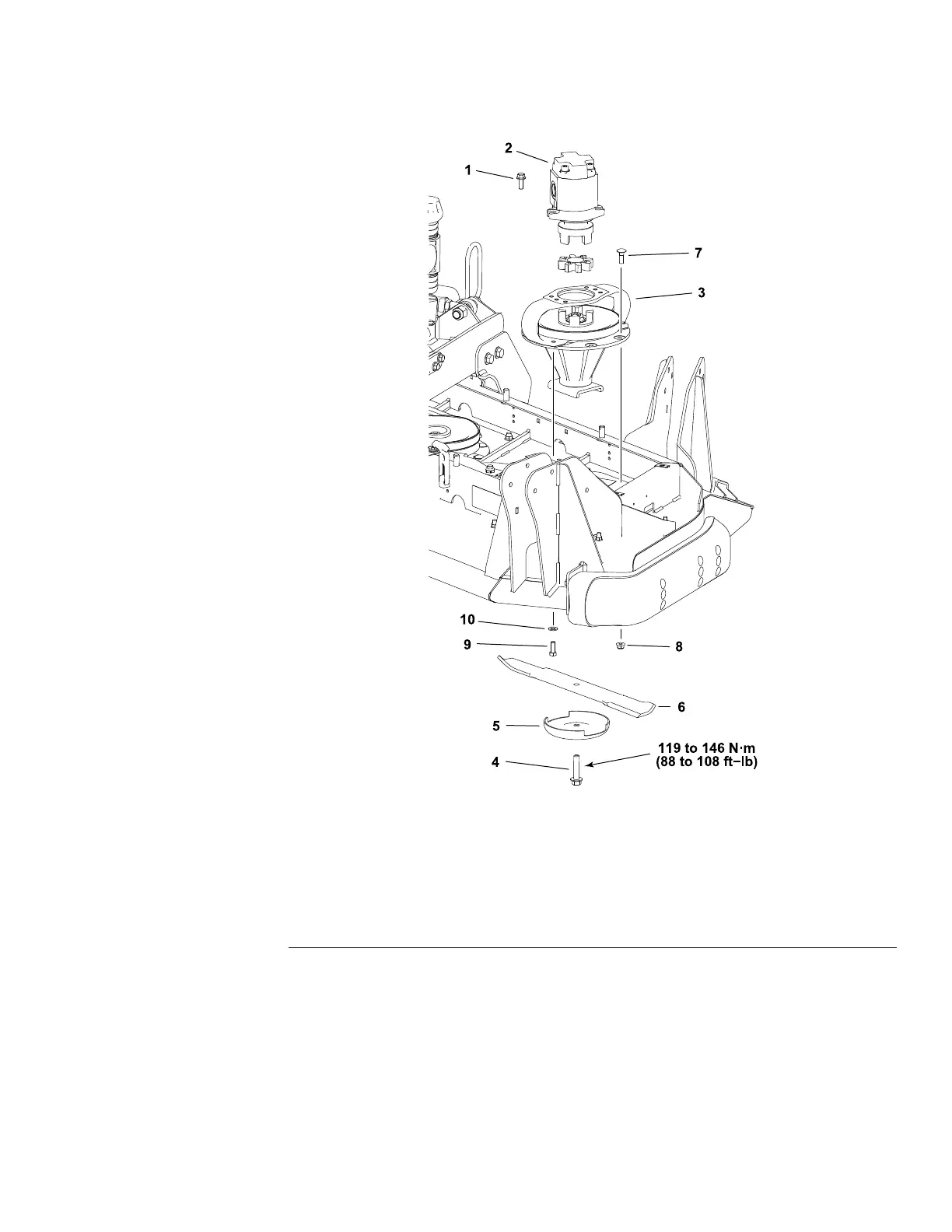

g299690
Figure332
1.Flangescrew6.Blade
2.Hydraulicmotor
7.Carriagebolt
3.Drivespindle8.Flangenut
4.Bladebolt
9.Capscrew
5.Anti−scalpcup10.Flatwasher
6.Removecuttingblade,anti−scalpcupandbladeboltfromspindletobe
serviced(Figure332).
7.Removespindlehousingassemblyfromdeck.
A.Fordrivenspindleassemblies,removeeight(8)angenutsthatsecure
spindletodeck.
B.Fordrivespindleassemblies,recordspindleorientationandloosenand
removefour(4)angenutsthatsecurespindletodeck.Then,remove
four(4)capscrewsandatwashersthatsecurespindleandhydraulic
motormounttodeck.
Groundsmaster
®
5900&5910
Page8–15
CuttingDecks:ServiceandRepairs
16227SLRevB
