www.trilithic.com
Page II-47
180 DSP Operation Manual
Signal Level Meter

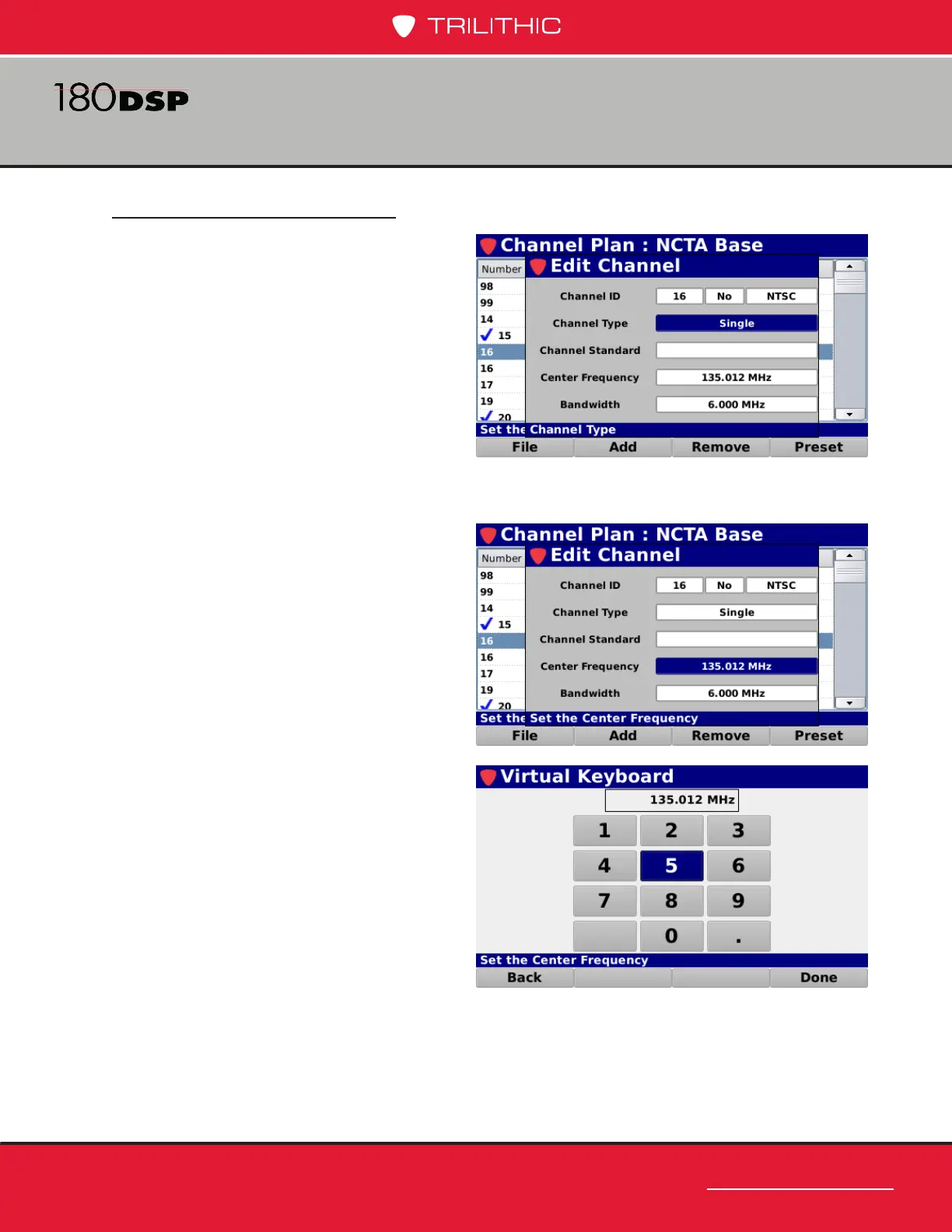

Center Frequency
The Center Frequency setting is used
to adjust the center frequency of the
channel. The center frequency can be
set from a minimum of 50.000 MHz up
to a maximum of 999.999 MHz.
Use either of the following methods
to change the center frequency of the
channel:
• Use the up/down arrow buttons
to change the value in 0.050
MHz increments.
• Press the Enter button and use
the Virtual Keyboard to directly
enter the center frequency as
shown in the image to the right.
Single Channel Properties
When the Channel Type is set to Single,
the following settings are available. From
within the Edit Channel screen, use the
left/right arrow buttons on the keypad to
navigate through the list of setup items.
