Page V-10
180 DSP Operation Manual
Signal Level Meter

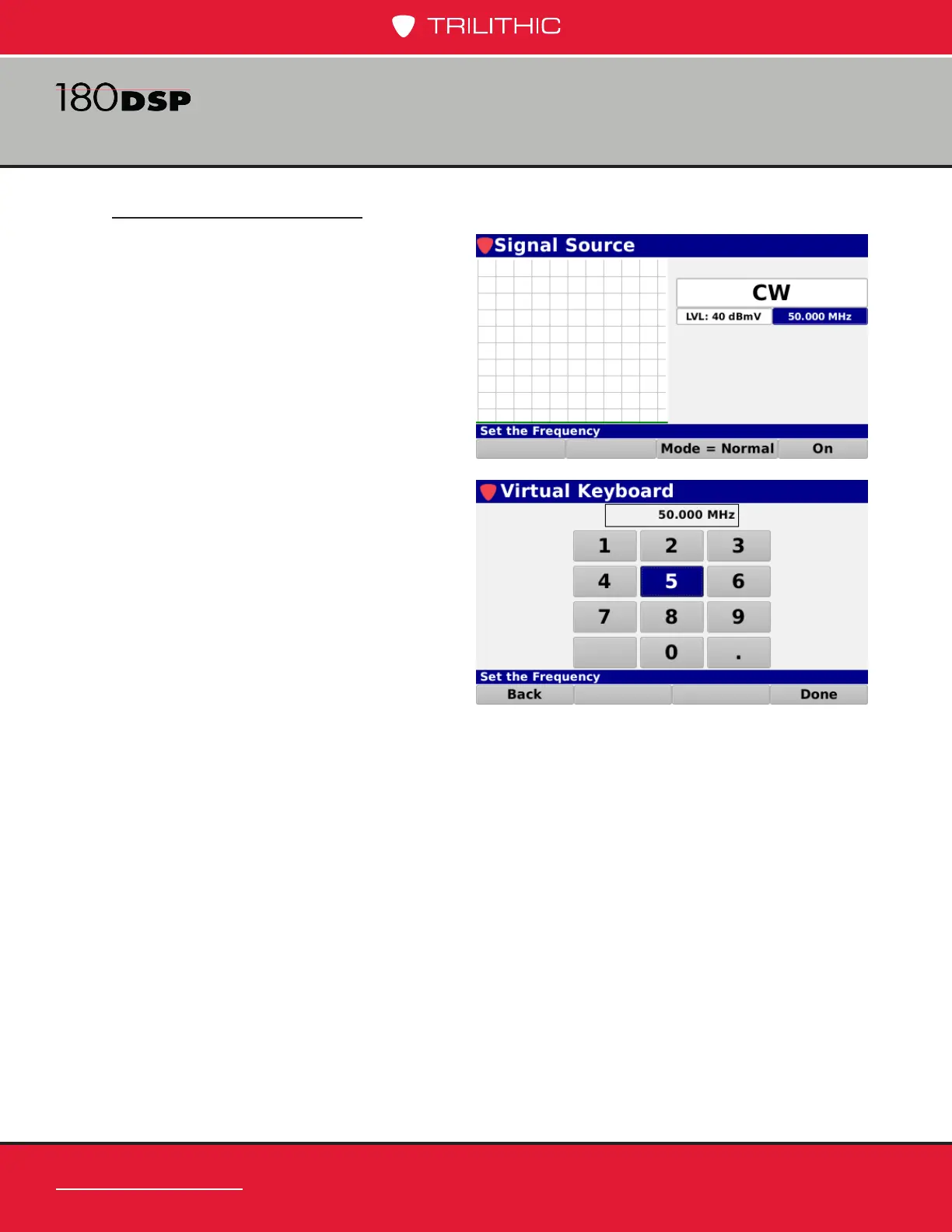

Frequency Adjustment
The center frequency can be adjusted
from 5 to 85 MHz. Highlight the
Frequency eld as shown in the image
to the right and then use either of the
following methods to change the center
frequency:
• Use the up/down arrow buttons to
change the center frequency in 0.1
MHz increments.
• Press the Enter button and use the
Virtual Keyboard to directly enter
the center frequency as shown in
the image to the right.
