Trilithic 180 DSP User Manual

www.trilithic.com
Page IV-53
180 DSP Operation Manual
Signal Level Meter
Probe Loss

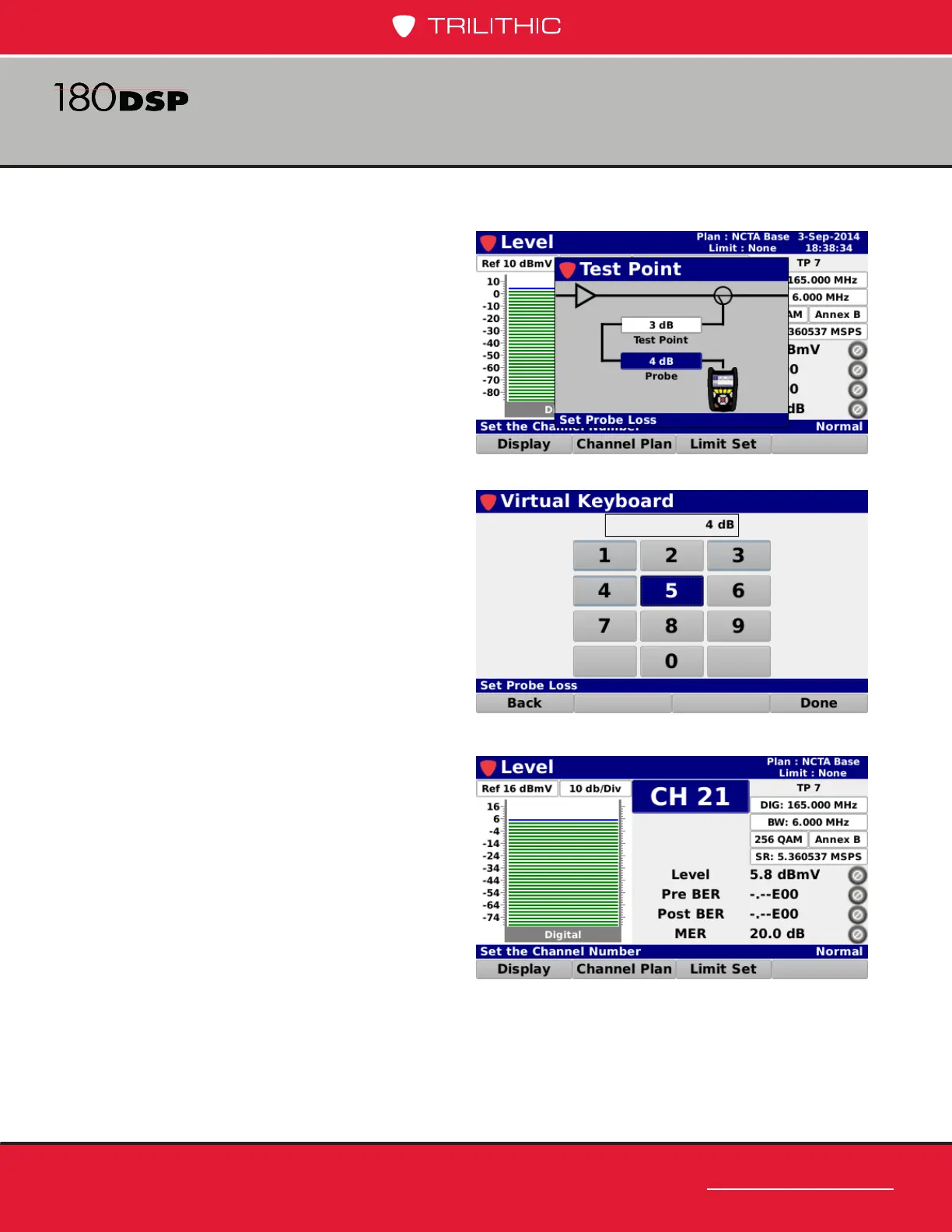

Highlight the Probe eld and then
use either of the following methods to
change the loss value:
• Use the up/down arrow buttons
to change the probe loss level
in 1 dB increments.
When nished entering the test point loss
information, press the Back button to
return to the Level screen.
The total test point compensation value
will be displayed to the right of the
channel number, as shown in the image to
the right.
• Press the Enter button and use
the Virtual Keyboard to directly
enter the loss value as shown in
the image to the right.
