180 DSP Operation Manual
Signal Level Meter

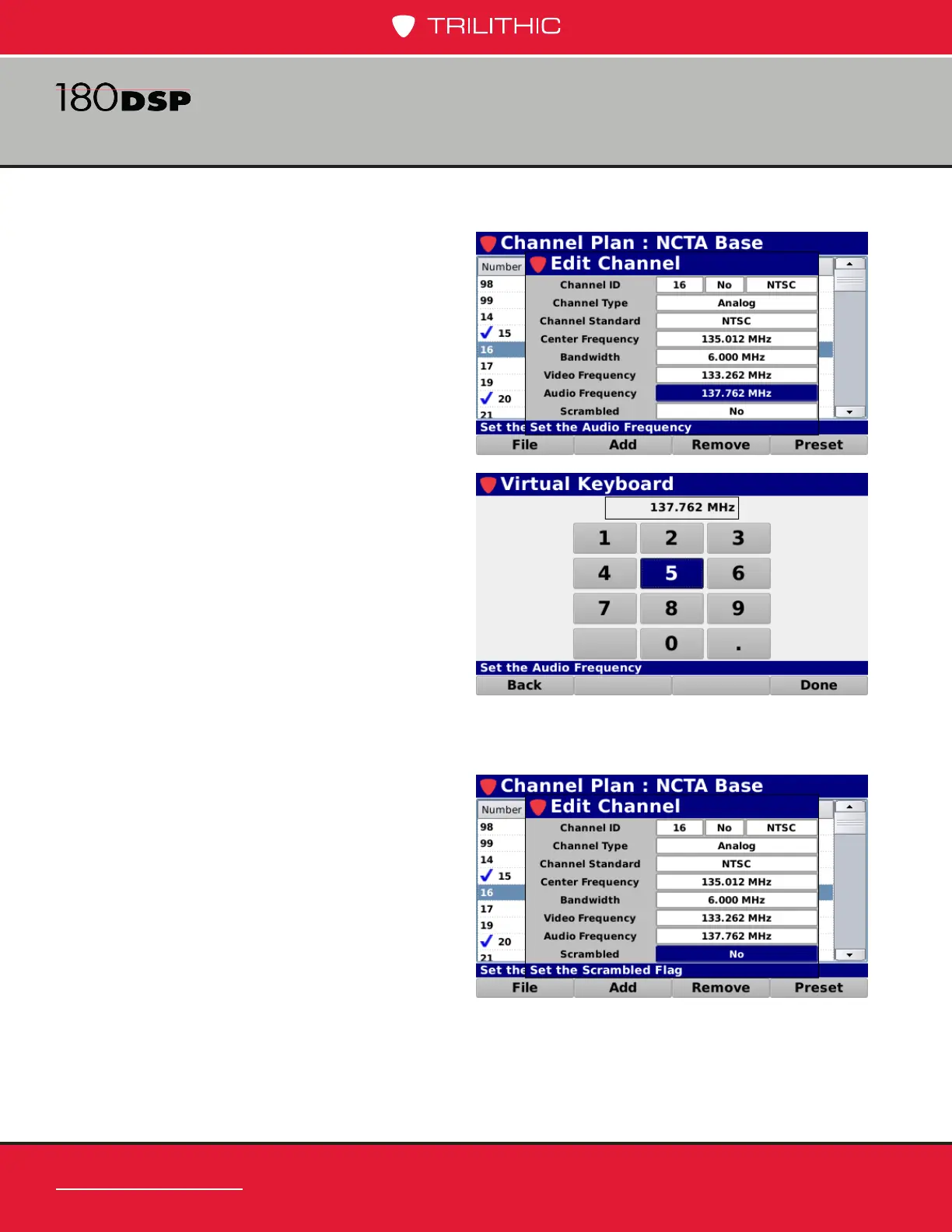

Scrambled
The Scrambled setting is used to set
whether the channel is scrambled.
The default setting for Scrambled is
No, use the up/down arrow buttons to
select from the following preset values:
• Select Yes if the channel is
scrambled.
• Select No if the channel is not
scrambled.
Audio Frequency
The Audio Frequency setting is used
to adjust the audio frequency of the
channel. The audio frequency can be
set from a minimum of 50.000 MHz up
to a maximum of 999.999 MHz.
Use either of the following methods
to change the audio frequency of the
channel:
• Use the up/down arrow buttons
to change the value in 0.050
MHz increments.
• Press the Enter button and use
the Virtual Keyboard to directly
enter the audio frequency as
shown in the image to the right.
