180 DSP Operation Manual
Signal Level Meter

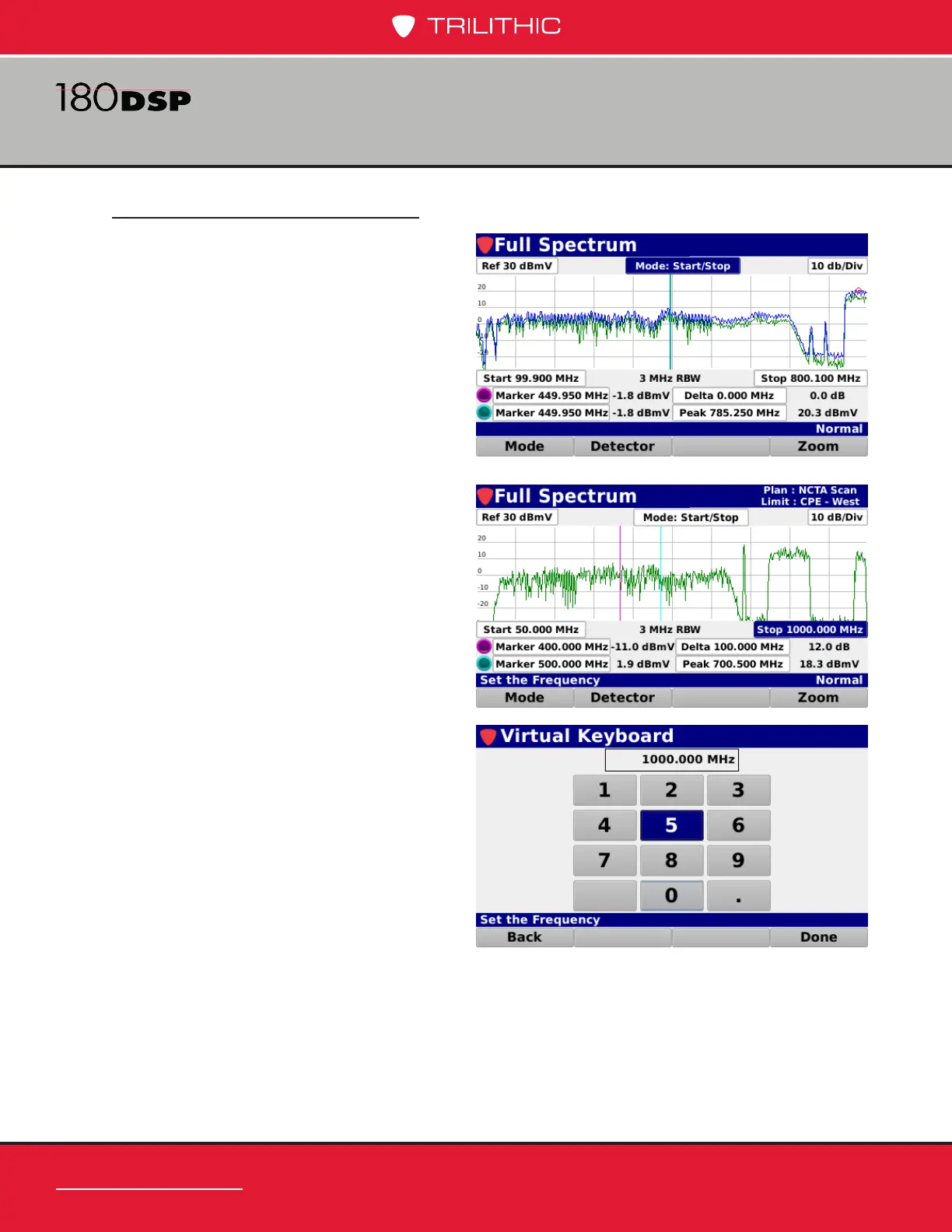

Stop Frequency Adjustment
Highlight the Mode: Start/Stop eld as
shown in the image to the right. Use the
up/down arrow buttons to set it to Start/
Stop.
Highlight the Stop frequency eld as
shown in the image to the right and then
use either of the following methods to
change the stop frequency:
• Use the up/down arrow buttons to
adjust the frequency in 0.1 MHz
increments.
• Press the Enter button and use the
Virtual Keyboard to directly enter
the stop frequency as shown in the
image to the right.
