180 DSP Operation Manual
Signal Level Meter
Opening a Channel Plan

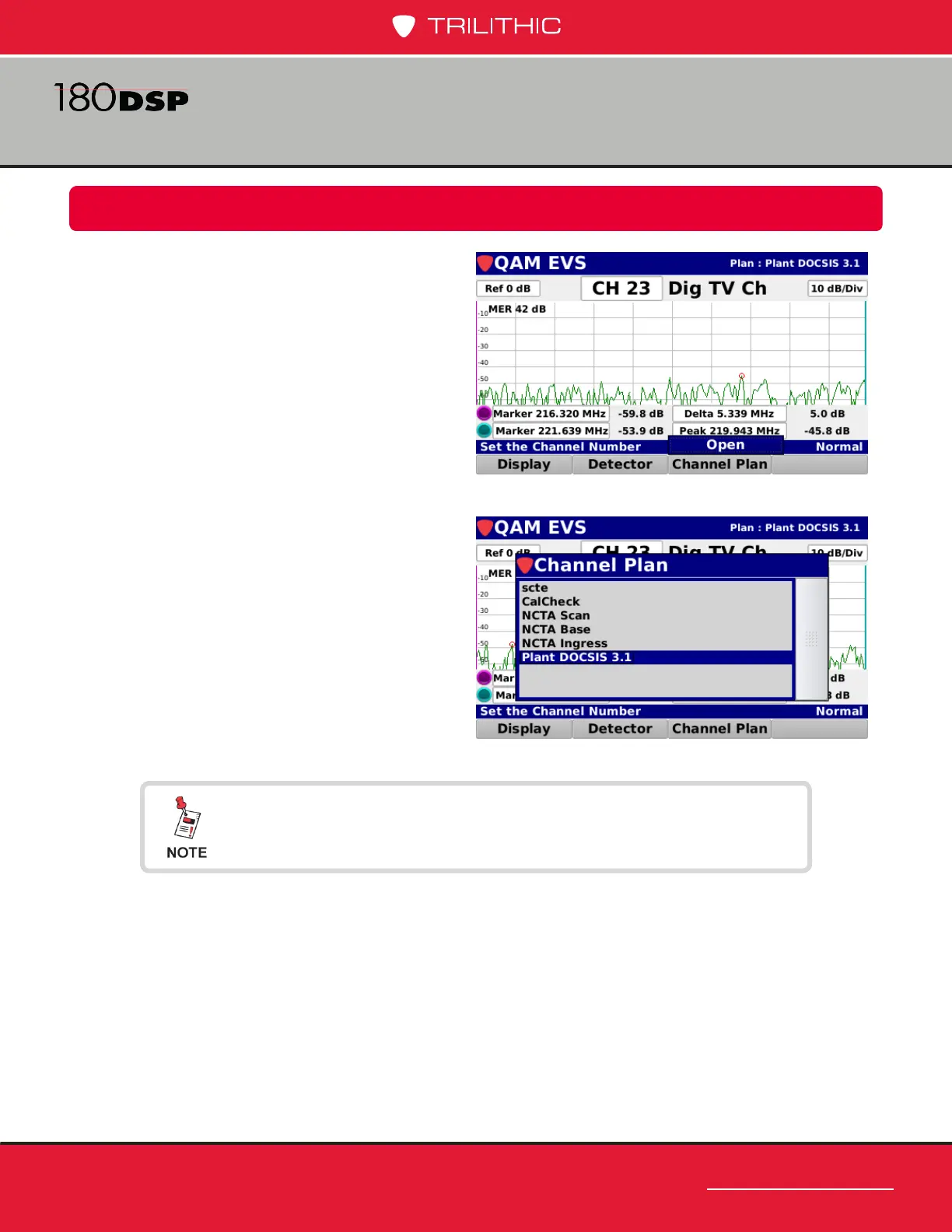

Select the Channel Plan softkey as shown
in the image to the right to select the channel
plan to use for the QAM Error Vector
Spectrum Analysis.
Select the Open button from the Channel
Plan pop-up menu and the Channel Plan
window will be displayed as shown in the
image to the right.
From the Channel Plan window, select the
name of the channel plan to use for the QAM
Error Vector Spectrum Analysis.
After selecting the channel plan, the QAM
EVS screen will be displayed again.
The Channel Plan window will be bypassed if there is only one
channel plan to choose from.
