www.trilithic.com
Page IV-80
180 DSP Operation Manual
Signal Level Meter
Full View

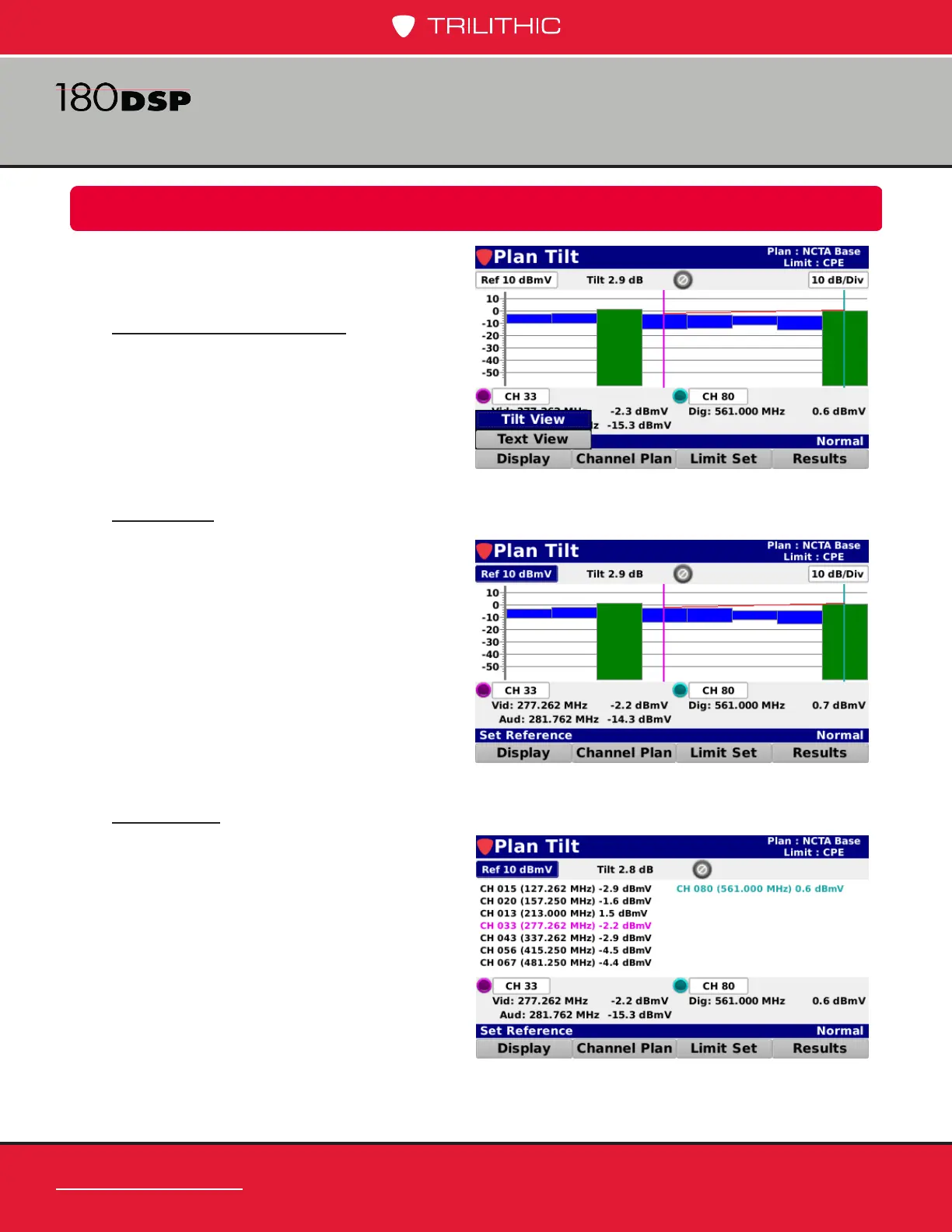

Select the Full View button from the
Display pop-up menu to display the level
of each channel in the channel plan scan.
Analog channels are represented by a
solid green bar, digital channels by a solid
blue bar, and single carrier channel by a
solid gray bar.
Display Type Adjustment
Select the Display softkey to scroll through
the following types measurement displays:
Measurement Results
The Tilt measurement results are
displayed with a pass/fail status when Tilt
limits are included in the open limit set.
Text View
Select the Text View button from the
Display pop-up menu to display a text
list of your favorites channels in the tilt
measurement.
