Trilithic 180 DSP - Return Spectrum Measurement

www.trilithic.com
Page IV-92
180 DSP Operation Manual
Signal Level Meter
Return Spectrum Measurement
Select the Mode softkey and choose Return
as shown in the image to the right.

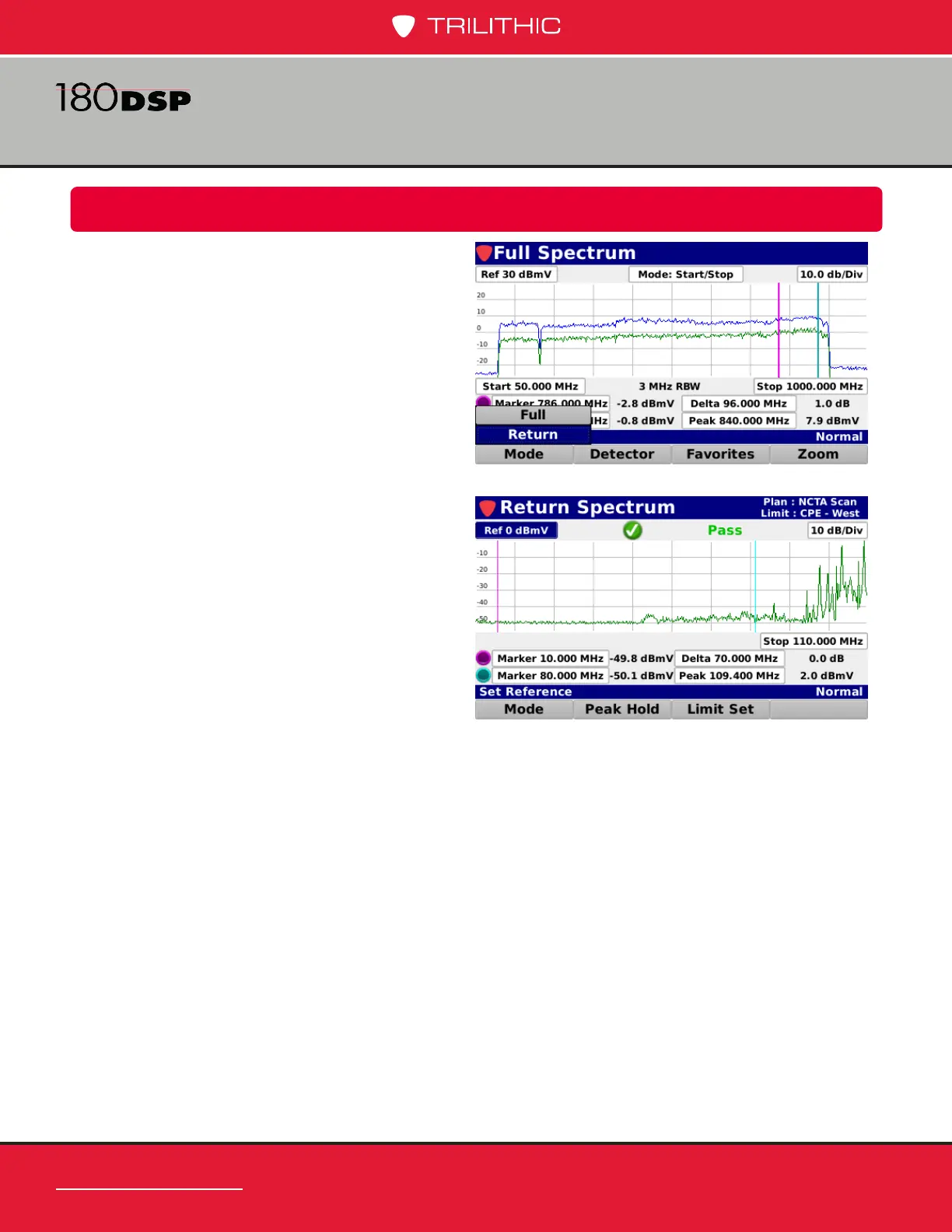

The Return Spectrum screen provide users
with the ability to view raw spectrum traces
for the forward path from 4 to 110 MHz with
DSP spectrum snapshots to give the user a
view of any upstream channels.
