Trilithic 180 DSP User Manual

www.trilithic.com
Page IV-61
180 DSP Operation Manual
Signal Level Meter

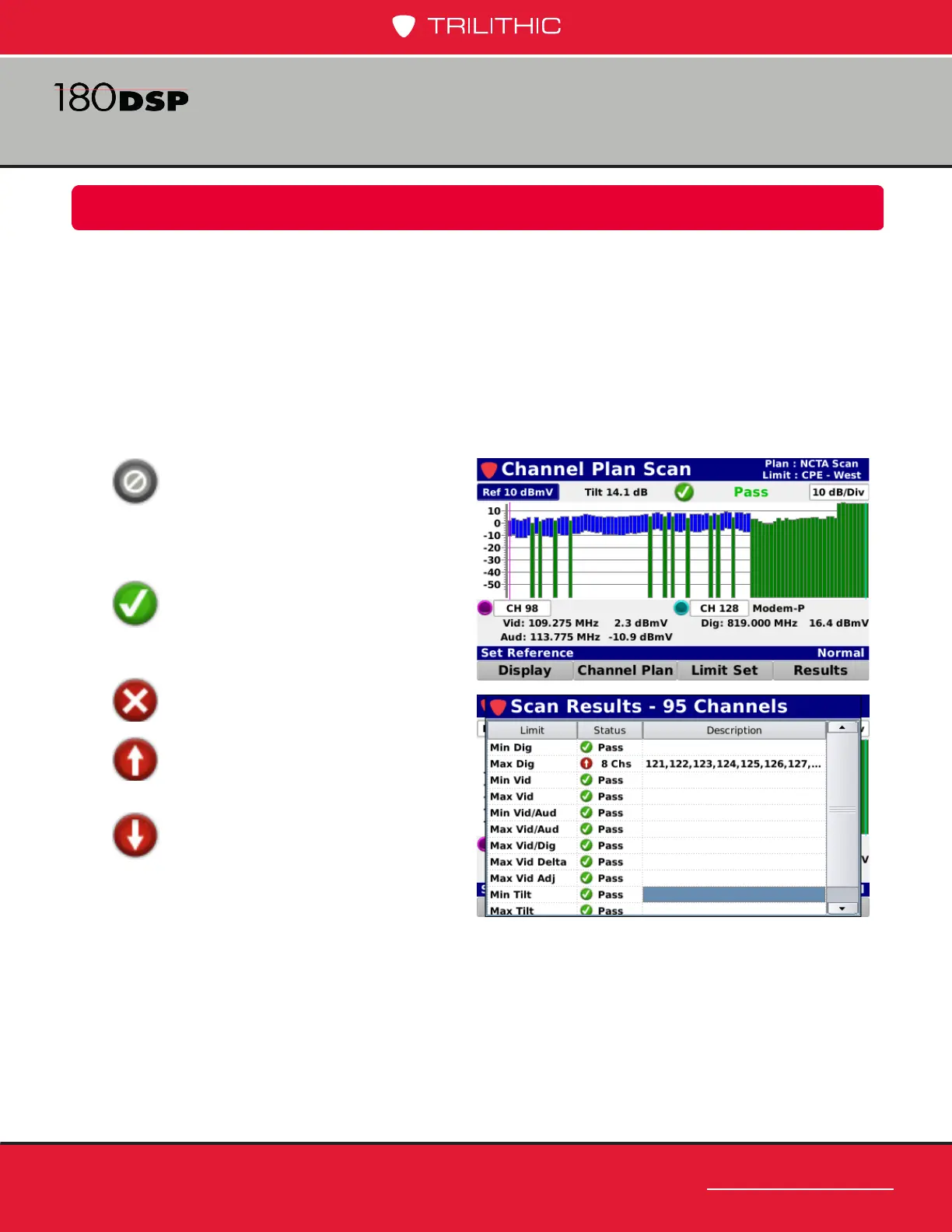

Pass/Fail Measurement Indicators
When a limit set has been opened, each channel that is included in the channel plan will be
tested against the selected limit set thresholds.
The Tilt measurement between the two user adjustable markers will be displayed along with
the Pass/Fail status of the channel plan scan. When any of the individual measurement
parameters of a channel plan scan fail, the channel plan scan as a whole will indicate a Fail
status.
When the Results softkey is selected the following results are displayed, each individual
measurement parameter will indicate its status and uses the following icons:
This icon indicates that this
measurement was skipped. This
only applies to measurements
that have been removed from the
currently selected limit set.
This icon indicates that this
measurement is within the
measurement thresholds of the
currently selected limit set.
This icon indicates that the
measurement limit set has failed.
This icon indicates that the
measurement has failed the high
limit measurement threshold.
This icon indicates that the
measurement has failed the low
limit measurement threshold.
