Trilithic 180 DSP User Manual

www.trilithic.com
Page IV-134
180 DSP Operation Manual
Signal Level Meter

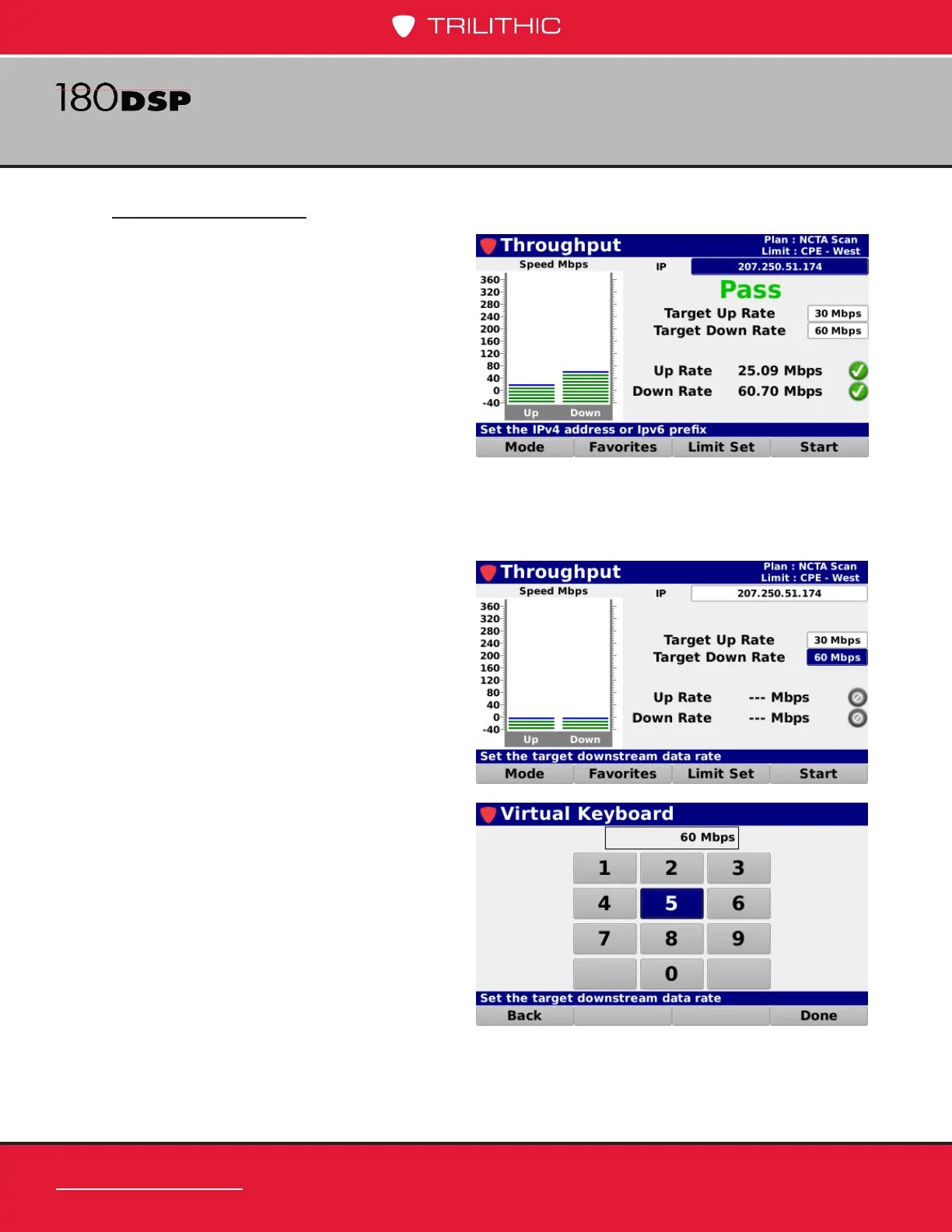

Throughput Mode
When the Throughput mode is selected,
the following measurement results are
displayed as shown in the image to the
right:
• Up Rate – This is the up stream
data rate. This measurement is
displayed in the bar graph and as a
numeric value.
• Down Rate – This is the
down stream data rate. This
measurement is displayed in the bar graph and as a numeric value.
Setting the Target Downstream Rate
To manually enter the target
downstream rate for the throughput
test, highlight the Target Down
Rate eld as shown in the image to
the right and then use either of the
following methods to change the target
downstream rate:
• Use the up/down arrow buttons
to adjust the rate in 1 Mbps
increments.
• Press the Enter button and use
the Virtual Keyboard to directly
enter the target downstream
rate as shown in the image to
the right.

Trilithic 180 DSP Specifications

General

Input Impedance	75 Ohm, VSWR < 1.25:1
Weight	2.5 lbs
Amplitude Accuracy	±1.5 dB
Display	LCD
Dimensions	9.5"
Frequency Range	5 MHz to 1 GHz
