www.trilithic.com
Page IV-95
180 DSP Operation Manual
Signal Level Meter

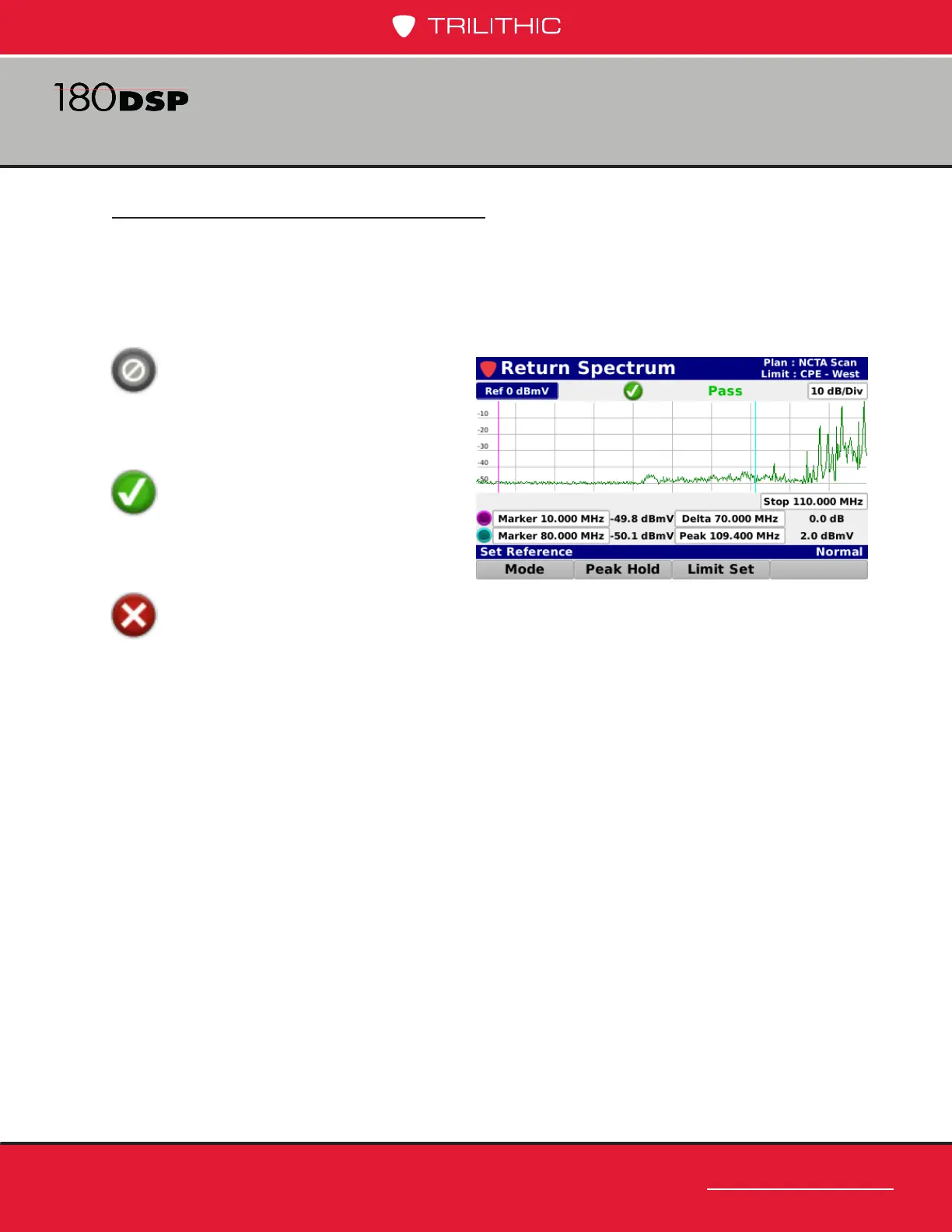

Pass/Fail Measurement Indicators
When a limit set has been opened, the return spectrum will be tested against the high limit
measurement threshold for the return spectrum ingress.
A Pass/Fail status will be displayed at the top of the screen. The pass/fail status of the
return spectrum ingress will be indicated using the following icons:
This icon indicates that this
measurement was skipped. This
only applies to measurements
that have been removed from the
currently selected limit set.
This icon indicates that this
measurement is within the high
limit measurement thresholds
for the return spectrum Ingress
measurement.
This icon indicates that the measurement has failed the high limit measurement
threshold for the return spectrum Ingress measurement.
