Trilithic 180 DSP - Top View; Bottom View

www.trilithic.com
Page I-19
180 DSP Operation Manual
Signal Level Meter

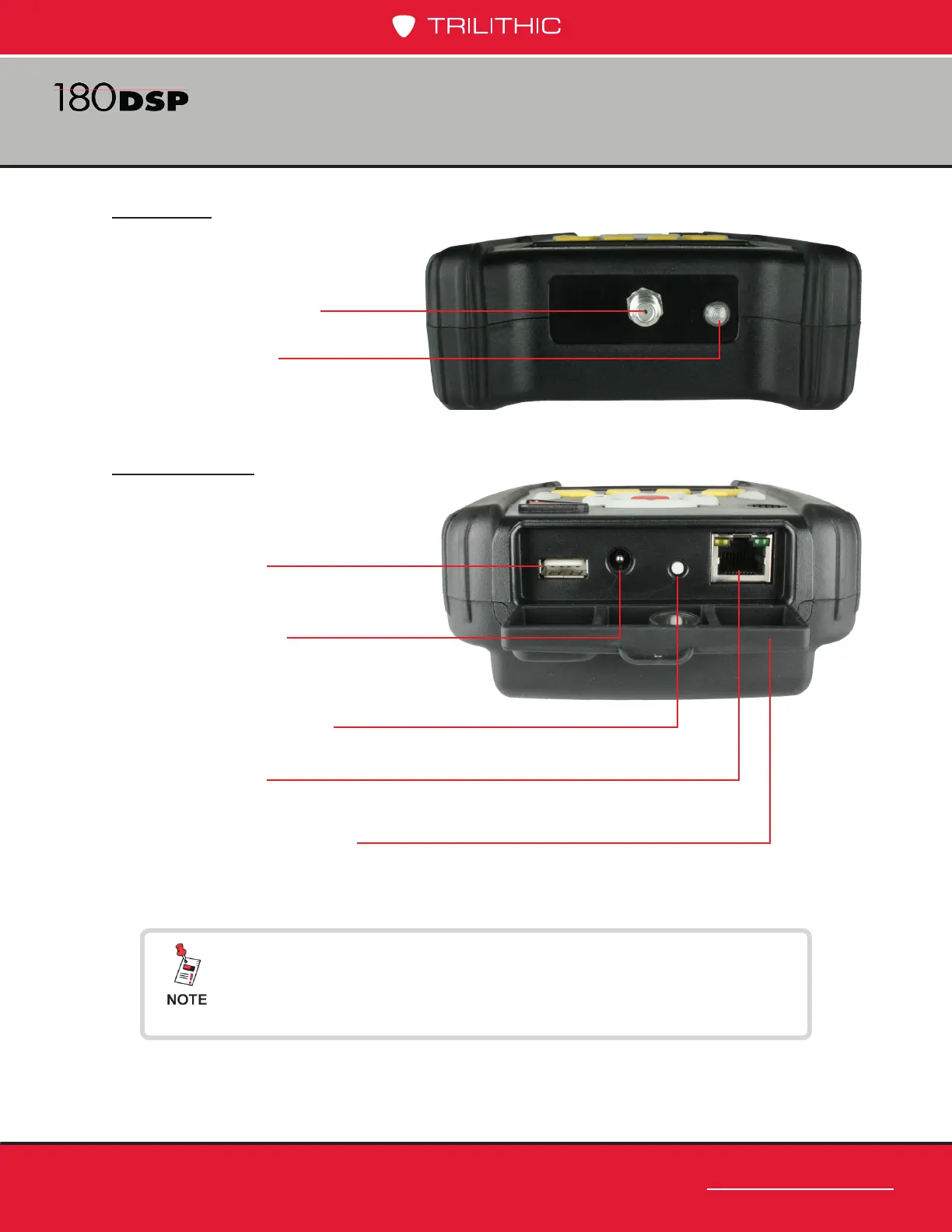

Top View
Bottom View
RF Input Connector
LED Flashlight
Ethernet Port
(10/100 Mbit/s)
USB 2.0 Port
(Type A)
DC Charge Port
System Reset Button
Protective Rubber Door
with Magnetic Closure
In the image above, the protective rubber door is in the open
position for illustrative purposes. This door should remain
closed when not using any of these ports.
