180 DSP Operation Manual
Signal Level Meter
Vertical Scale Adjustment

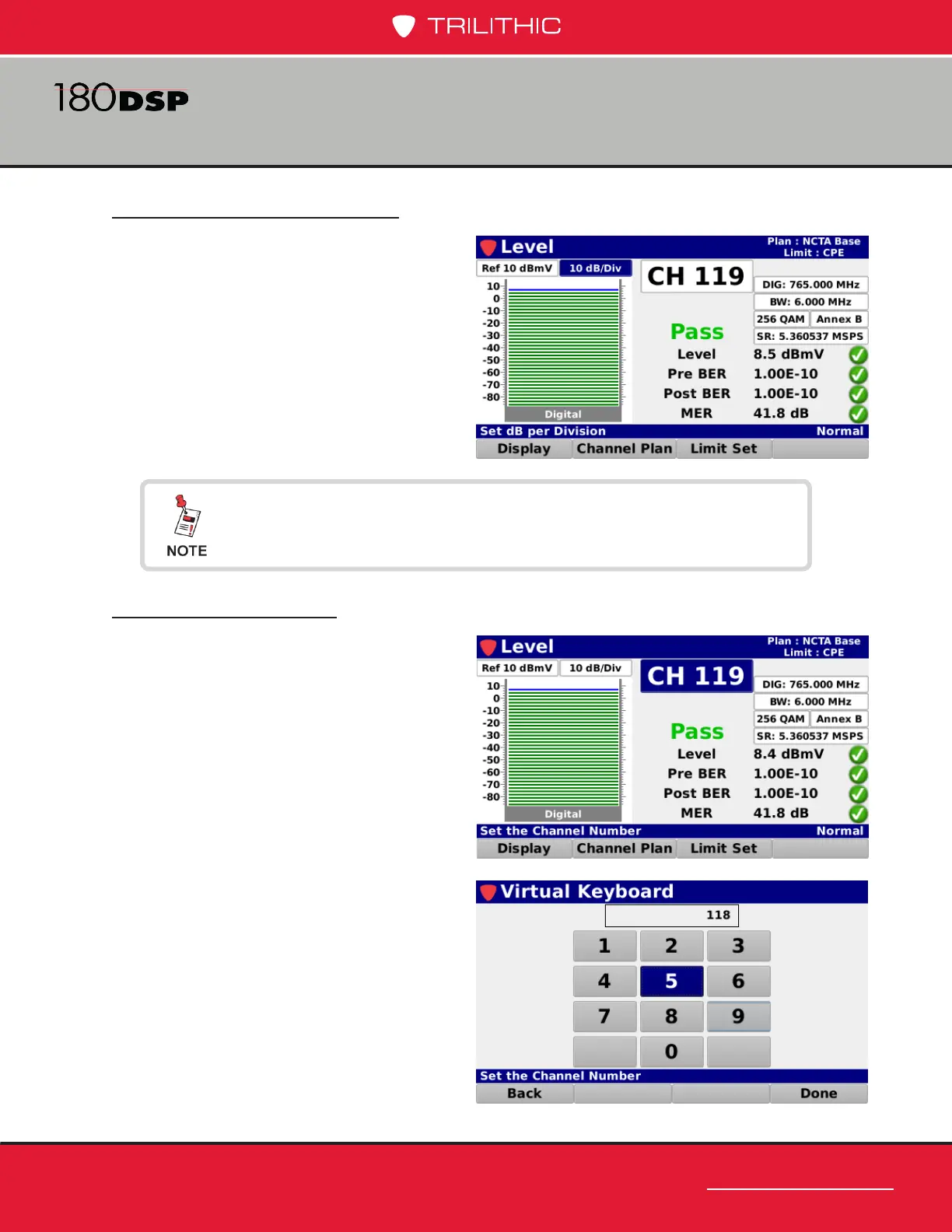

Highlight the vertical scale eld as shown
in the image to the right. Then, use the
up/down arrow buttons to select from a
vertical scale of 1, 2, 5 or 10 dB/div.
Channel Adjustment
Highlight the channel eld as shown in
the image to the right and then use either
of the following methods to change the
channel number:
• Use the up/down arrow buttons to
change the channel number in 1
channel increments.
• Press the Enter button and use the
Virtual Keyboard to directly enter
the channel number as shown in
the image to the right.
The Vertical Scale adjustment is only available when the
measurement display is set to the bar graph.
