Bar Graph

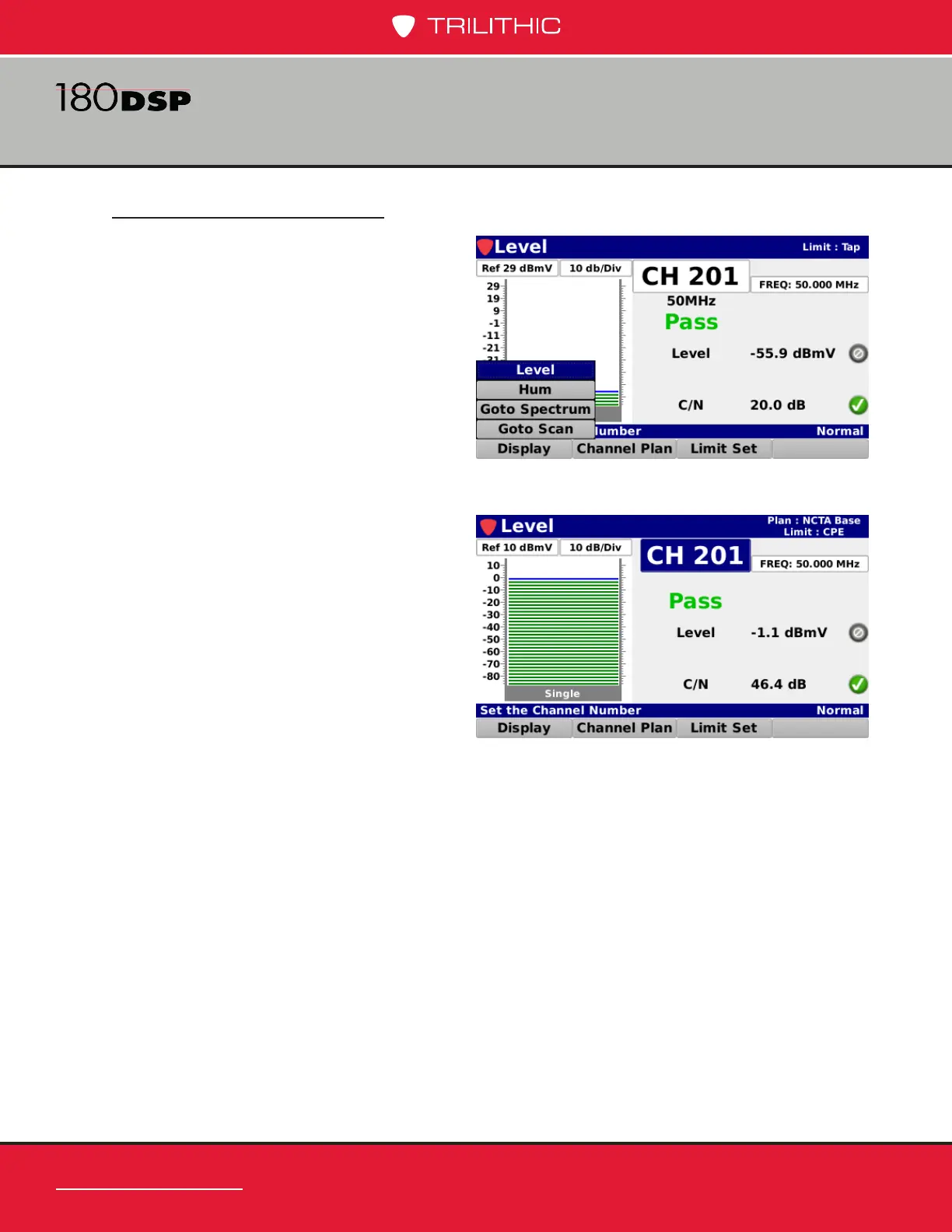

Select the Level button from the
Display pop-up menu to display a bar
graph of the video and audio carrier
levels of the analog video carrier.
The following measurement results
are displayed with a pass/fail status for
each measurement that is included in
the open limit set:
• Video level value with bar graph
• Audio level value with bar graph
• Video/Audio delta value
• C/N value
Display Type Adjustment
Select the Display softkey to scroll
through the following types measurement
displays:
