www.trilithic.com
Page IV-159
180 DSP Operation Manual
Signal Level Meter
Overview
Trafc Control Plus is an optional feature of the 180 DSP. If you do not have this option, call
Trilithic at (800) 344-2412 in order to purchase an option activation code and start using this
option today.
To view the installed functions on your instrument, see Section II: Setup Menu, Chapter 2:
Instrument Information.

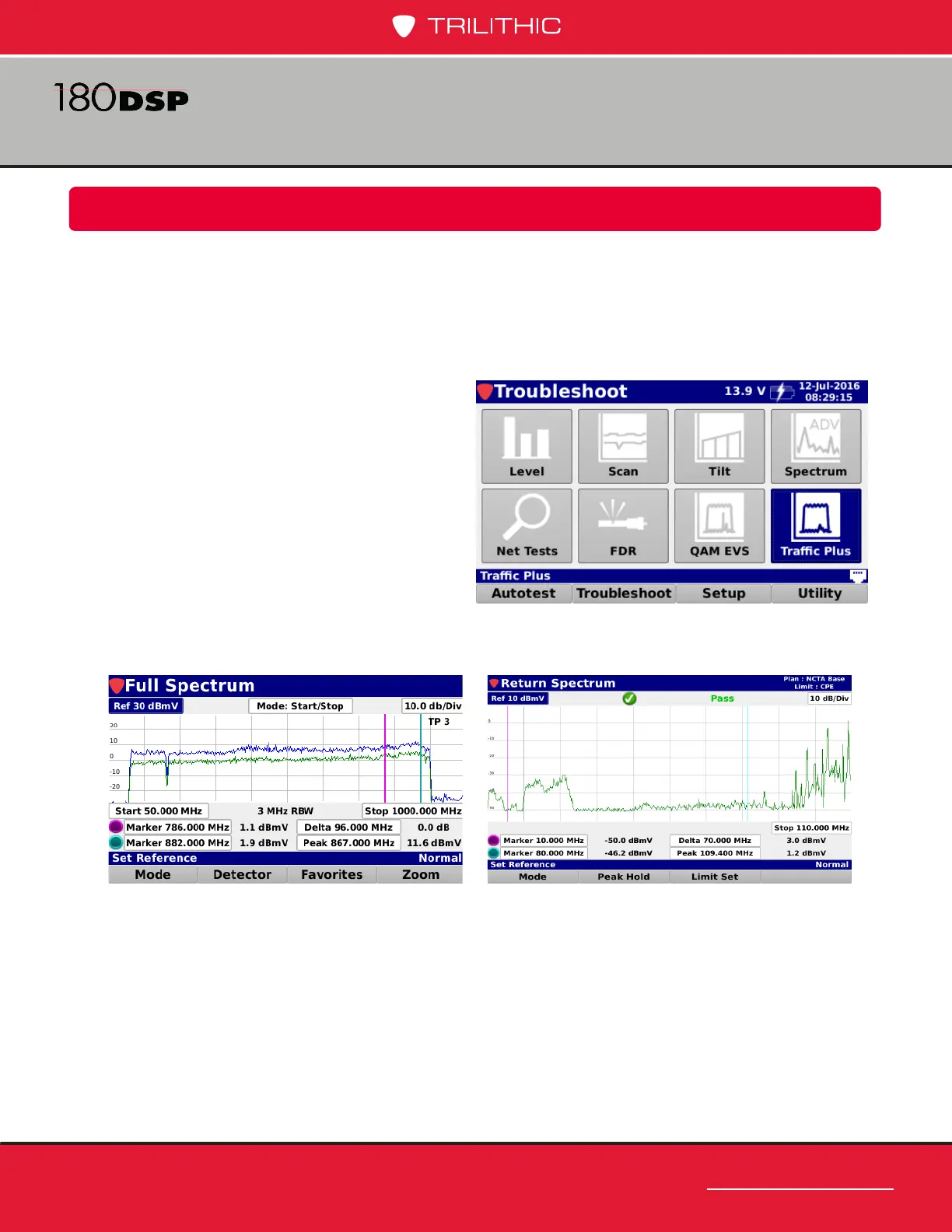

Select the Trafc Plus icon as shown in the
image to the right to perform a Trafc Control
Plus measurement using the 180 DSP.
The Trafc Control Plus spectrum menu
provides a real time view of the return band.
This menu has 100% coverage, so even the
shortest cable modem burst can be seen.
It will also show ingress even under a busy
upstream.
In a typical HFC plant the RF spectrum is
divided into two main bands, the forward band and the return band.
Trafc Control Plus (OPTIONAL)
Chapter 9
Forward Spectrum Return Spectrum
