www.trilithic.com
Page I-31
180 DSP Operation Manual
Signal Level Meter
Using the Virtual Keyboard
The instrument makes use of a Virtual Keyboard similar to that of a smart device for
entering both numbers and letters.
The following Virtual Keyboards can be accessed by selecting the corresponding softkey:
• Select the abc softkey to display a keyboard with lower case letters
• Select the ABC softkey to display a keyboard with upper case letters
• Select the 123 softkey to display a keyboard with numbers and symbols
• Select the 123+ softkey to display a keyboard with additional symbols

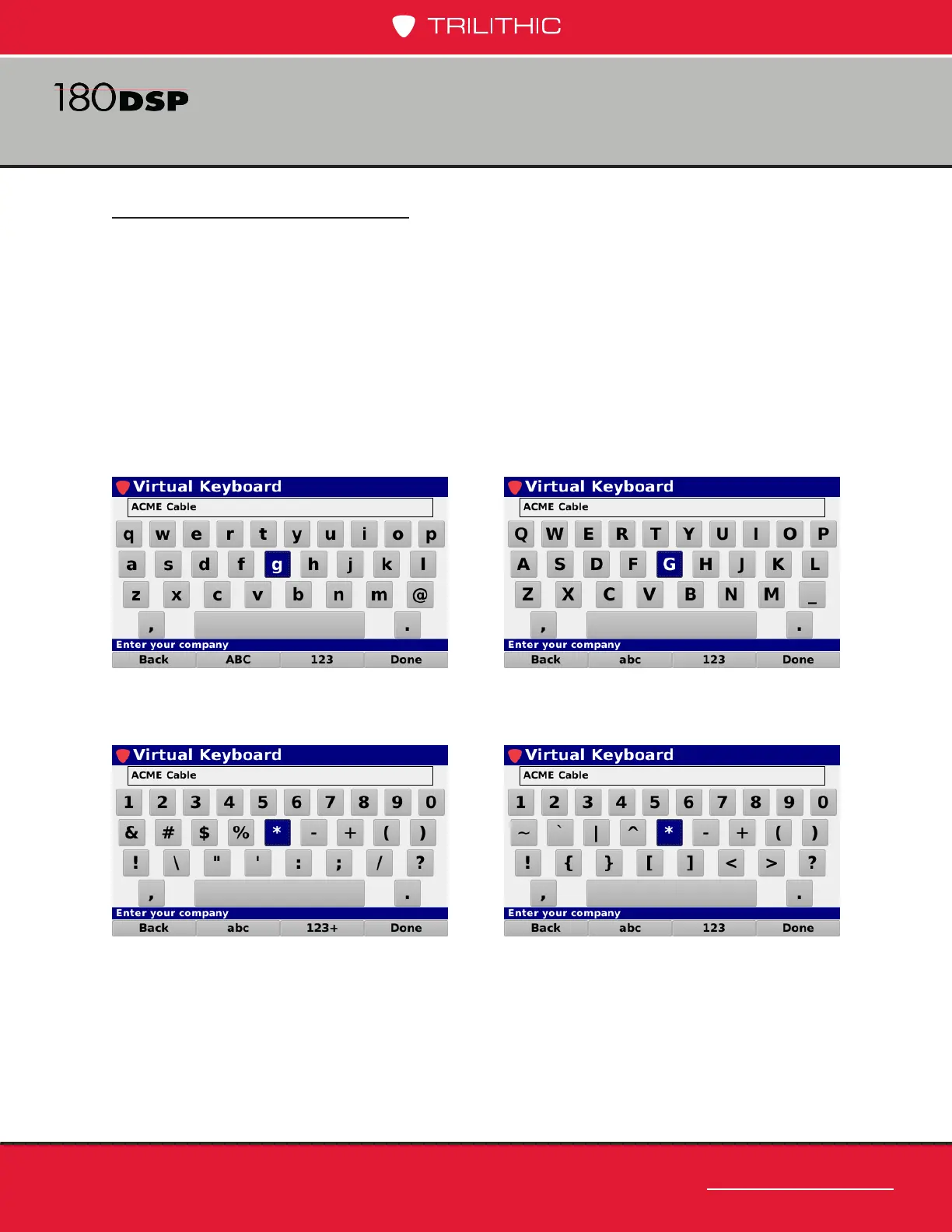

abc softkey selected ABC softkey selected
123 softkey selected 123+ softkey selected
To delete existing text, use the Back softkey. Once you have nished making changes,
select the Done softkey to save your changes and exit or select the Back button on the
keyboard to exit without saving your changes.
