180 DSP Operation Manual
www.trilithic.com
Signal Level Meter

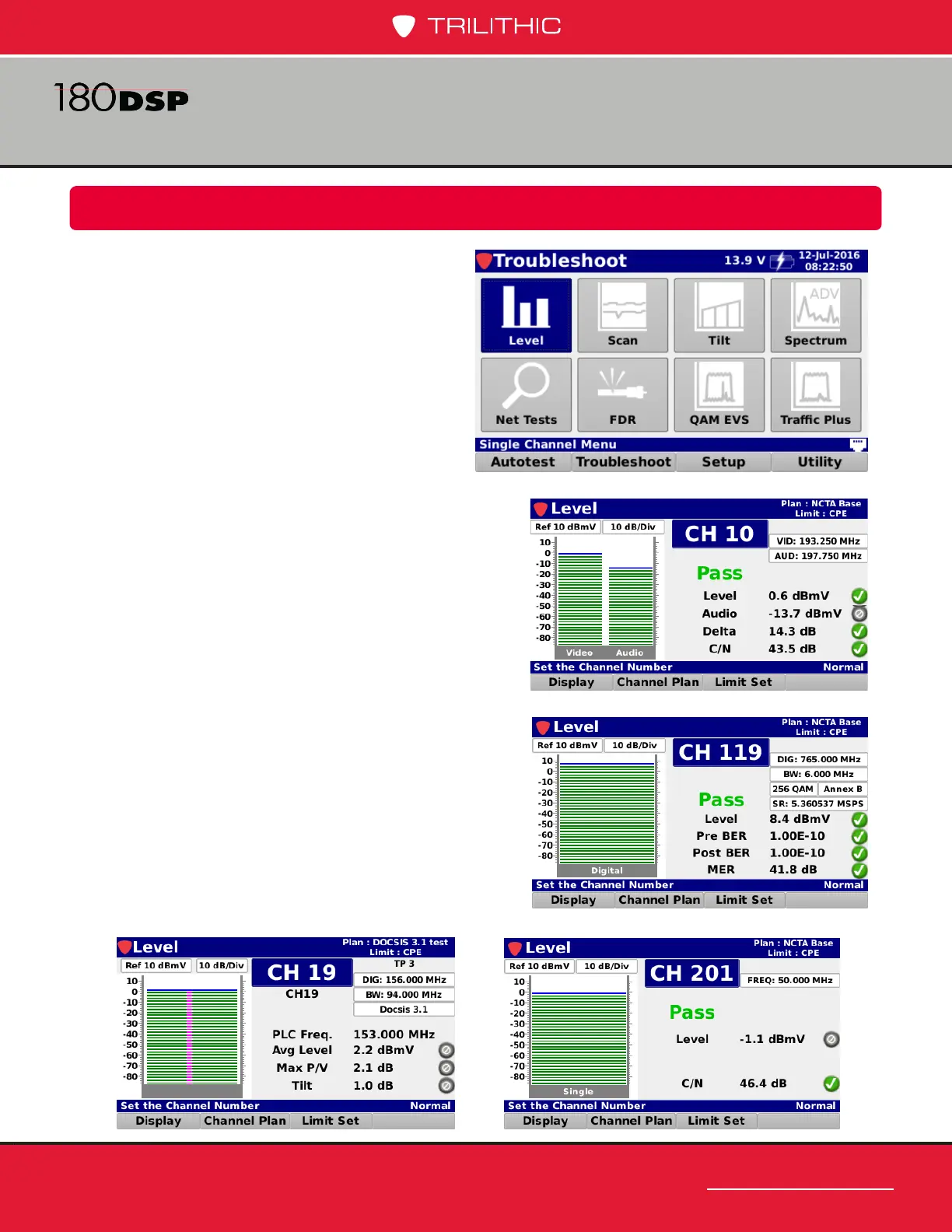

The Level screen will be displayed as shown in the
image to the right. This screen allows you to perform
measurements on the following types of channels:
• Analog (top right)
• NTSC
• PAL B/I/D/N/M/G/H/K
• SECAM B/L/D/G/H/I/K
• Digital (right)
• Annex A/B/C
• 16/32/64/128/256 QAM
• DOCSIS 3.1 (bottom left)
• Single Carrier (bottom right)
Level Measurement
Chapter 2
Overview
Select the Level icon as shown in the image
to the right to perform channel measurements
on the 180 DSP.
