www.trilithic.com
Page IV-9
180 DSP Operation Manual
Signal Level Meter

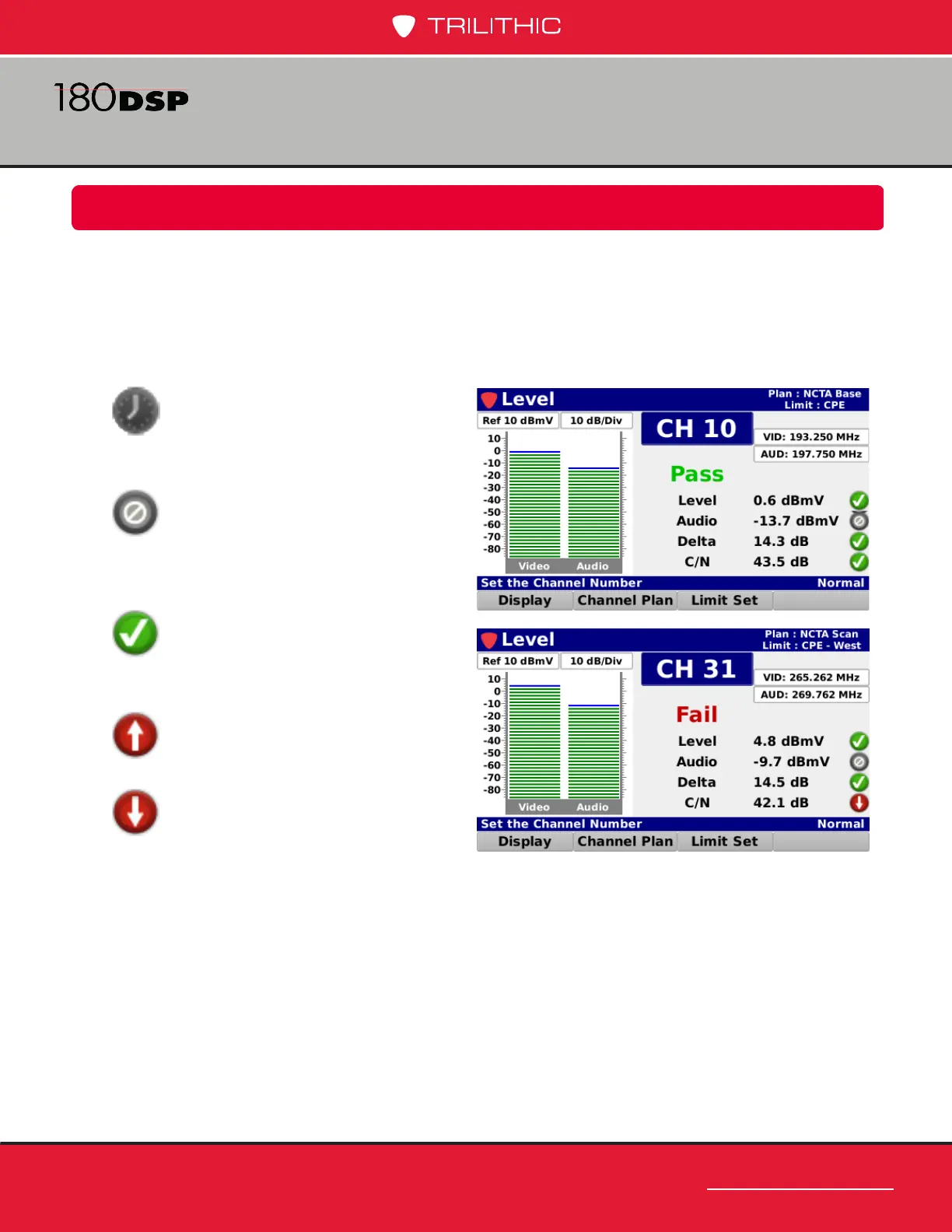

Pass/Fail Measurement Indicators
When a limit set has been opened, each channel that is included in the channel plan will be
tested against the selected limit set thresholds.
A pass/fail status will be displayed below the channel number. When any of the individual
measurement parameters of a channel fail, the channel as a whole will indicate a fail status.
Each individual measurement parameter will indicate its status using the following icons:
This icon indicates that this
measurement is currently being
performed and you must wait for it
to be completed.
This icon indicates that this
measurement was skipped. This
only applies to measurements
that have been removed from the
currently selected limit set.
This icon indicates that this
measurement is within the
measurement thresholds of the
currently selected limit set.
This icon indicates that the
measurement has failed the high
limit measurement threshold.
This icon indicates that the
measurement has failed the low
limit measurement threshold.
