180 DSP Operation Manual
Signal Level Meter
Each test location will be tested against a channel plan and limit set that is congured using
the ViewPoint WFM Module.
The following information will be displayed below each location;

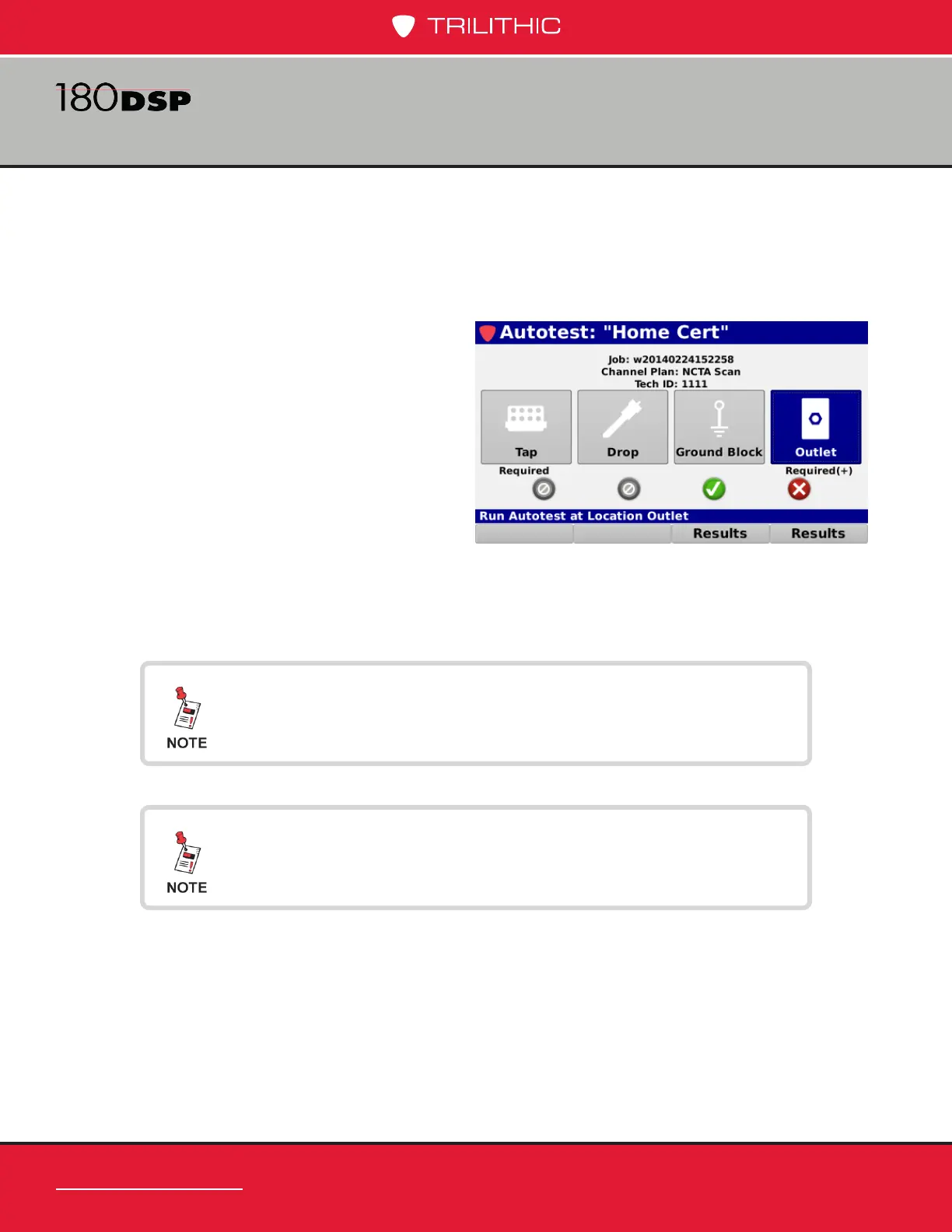

• Required Status – Each location will display its status with either of the following:
• Blank – This is displayed when
the location is not required and
can be tested more than once.
• Required – This is displayed
when the location is required
and can only be tested once.
• Required (+) – This is
displayed when the location
is required and can be tested
more than once.
• Location Pass/Fail Indicators – Each location will display a pass/fail indicator as
shown in the following section:
Channel Plans and Limit Sets created/modied on the 180
DSP can only be used in the Troubleshooting menu. Autotests
require ViewPoint WFM Module Channel Plans and Limit Sets.
You can retest any location that fails as many times as you
like but once a required location passes and only one test is
required, you are done with that location.
