Survey of the freshbrew/instant water system - FB

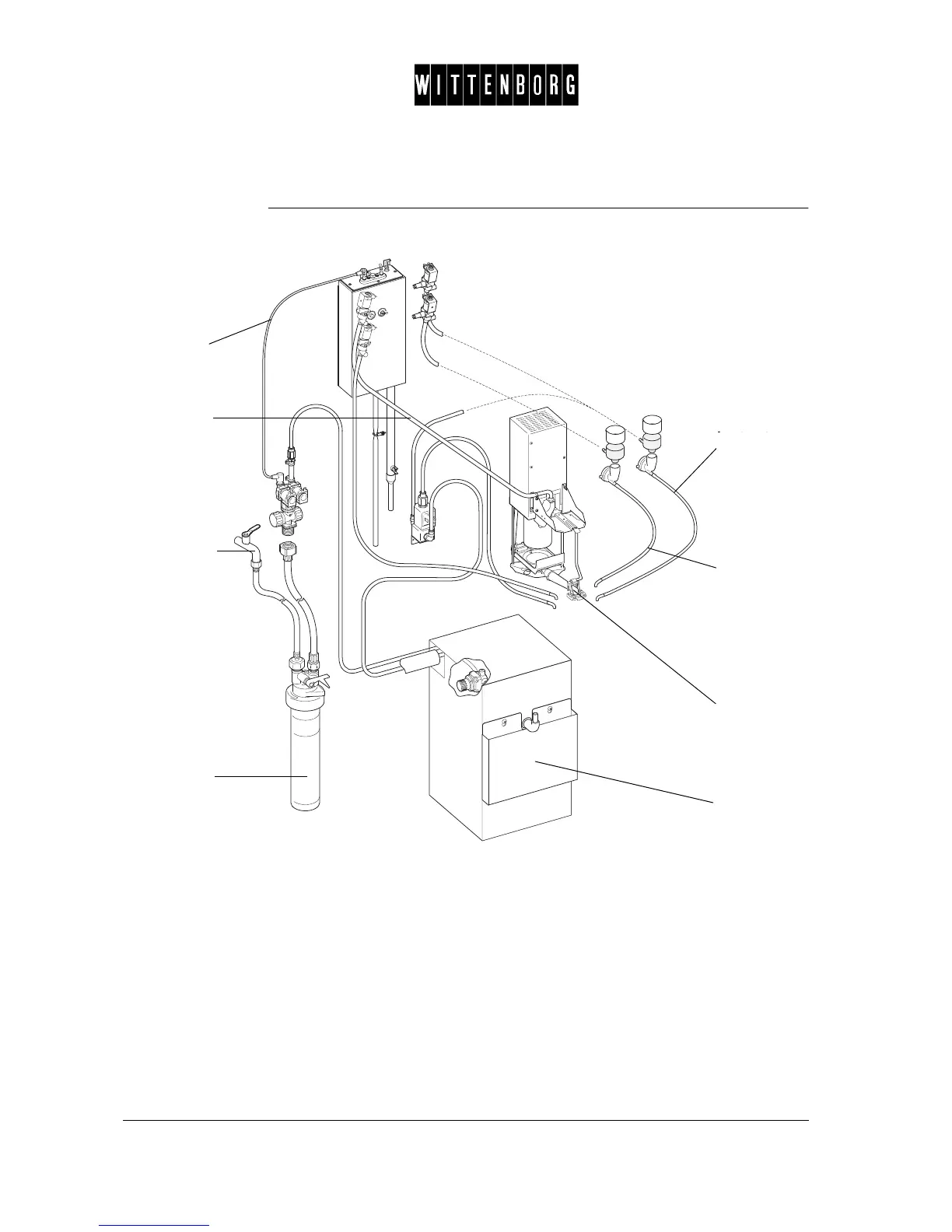

Water system The illustration below shows the water system:

Cold

water

Hot

water

Instant

drinks

Coffee,

whitener

and

sugar

Fresh

brew

drinks

Water

inlet

Water

filter

Cold

drinks

unit

Instant

drinks
