Wittenborg FB 5100 - Dismounting the Fan

To Next Page

To Previous Page

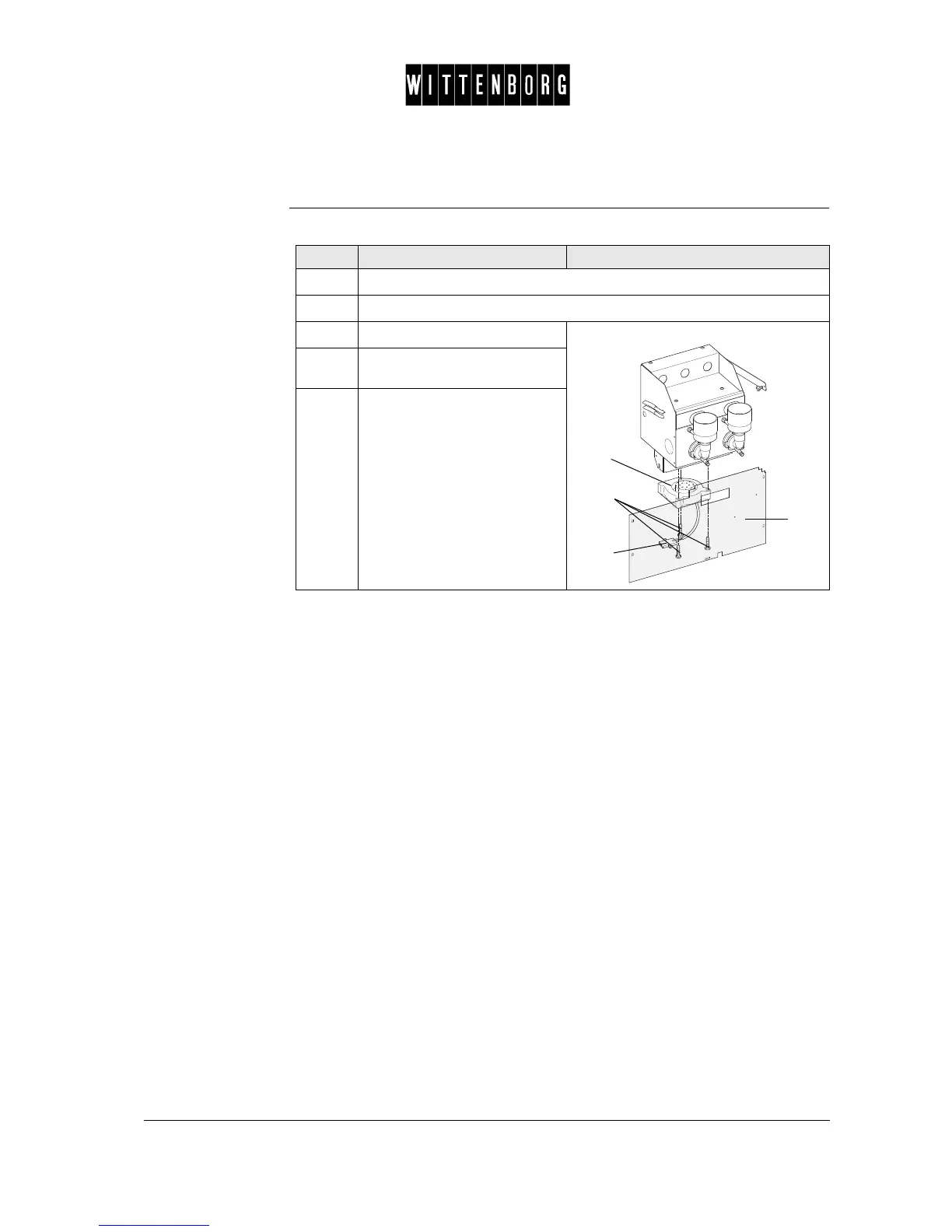

Dismounting the fan

Procedure

Step Action Illustration

Open the cabinet door.

Turn off machine (main switch), pull out the power supply plug.

Remove protective cover (1).

Disconnect the electrical

connection (2).

Remove 3 screws (3) and

dismount fan (4).
