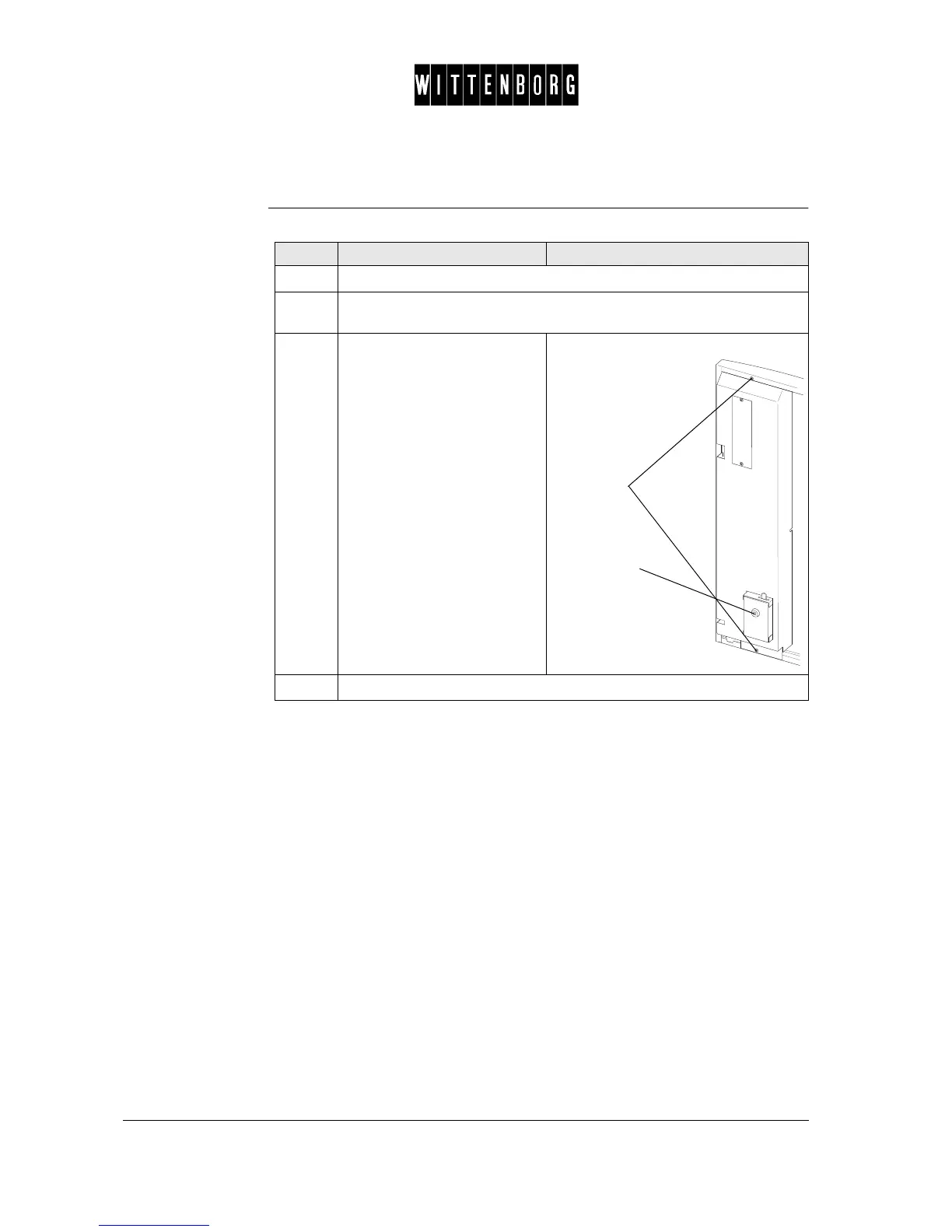

Dismounting the door cover

Procedure Follow this procedure to dismount the door cover:

Step Action Illustration

Open the cabinet door.

Turn off the machine (main switch), unplug the power supply plug and

close the water cock.

Remove cash box (key) (1).

Remove 2 screws (2).

Dismount door cover by gently pulling forwards.
