Replacing the water pump
Warnings • Before any repair is carried out, the main plug must be withdrawn from
the main supply!
• Only carry out this repair when the machine has cooled down!
Procedure Follow these steps to replace the water pump:

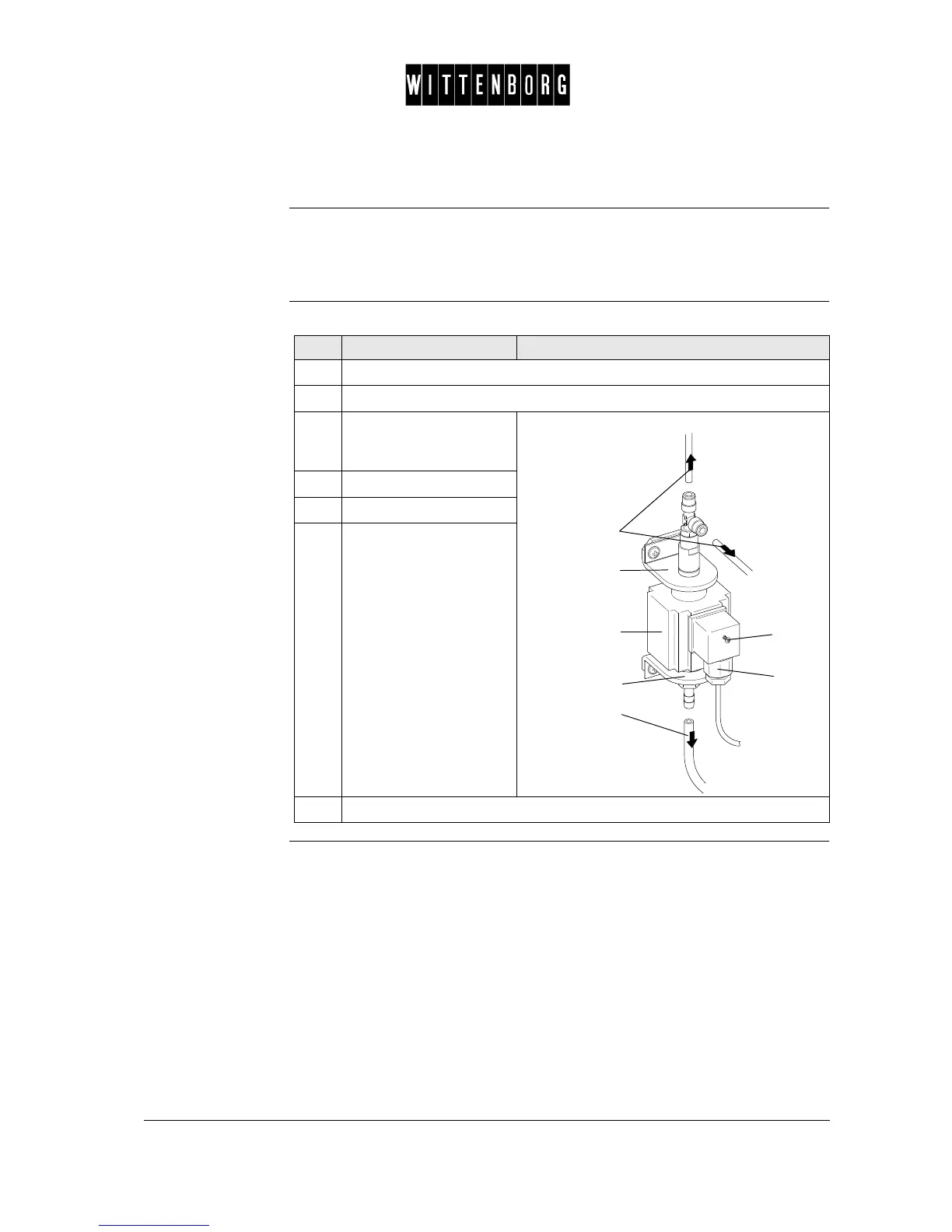

Step Action Illustration
1.
Remove waste bucket, coffee bean canister and espresso brewer.
2.
Dismount water system.
3.
Loosen screw (1) to dis-
connect cable connection
(2).
4.
Pull off hose (3).
5.
Remove hoses (4).
6.
Dismount pump (5) by re-
leasing it from the rubber
suspension (6).
7.
Install new water pump and reassemble in reverse order.
