Replacing the espresso brewer motor
Warnings • Before any repair is carried out, the main plug must be withdrawn from
the main supply!
• Only carry out this repair when the machine has cooled down!
Procedure Follow these steps to replace the espresso brewer motor:

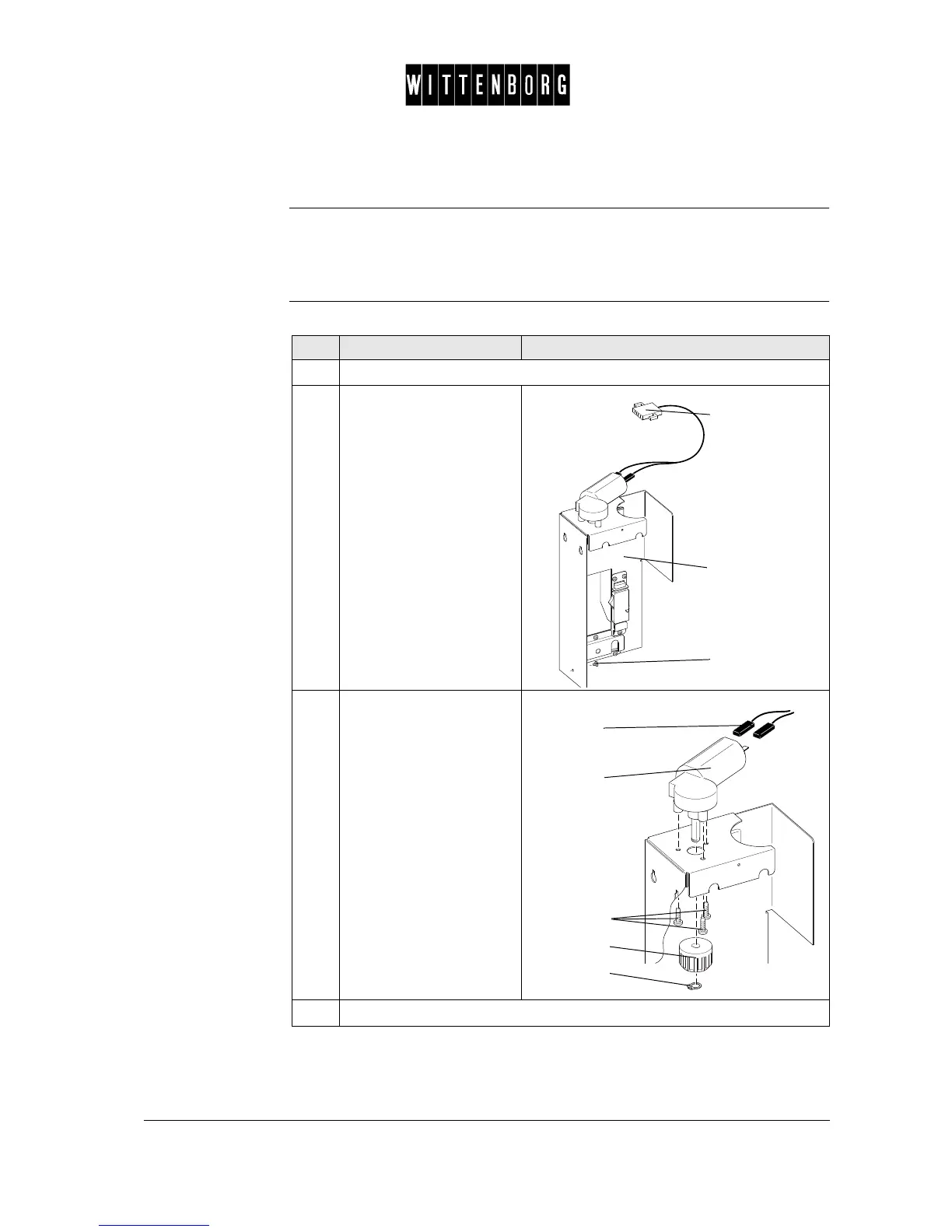

Step Action Illustration
1.
Remove waste bucket, coffee bean canister and espresso brewer.
2.
Remove bracket for es-
presso brewer (1) by dis-
connecting cable
connection (2) and remov-
ing one screw (3).
3. • Disconnect cable
connection (1)
from espresso
brewer motor
• Remove retaining
ring (2) to dis-
mount gear wheel
(3)
• Remove three
screws (4) to dis-
mount espresso
brewer motor (5)
4.
Install new espresso brewer motor and reassemble in reverse order.
3
2
1
1
2
4
3
5
