Resetting the boil over sensor

Procedure Follow this procedure to reset the boil over sensor:

Step Action

Open the cabinet door, turn off the machine (main switch), pull out

the power supply plug and close the water cock.

Dismount the brewer.

Remove the protective cover in front of the water tank.

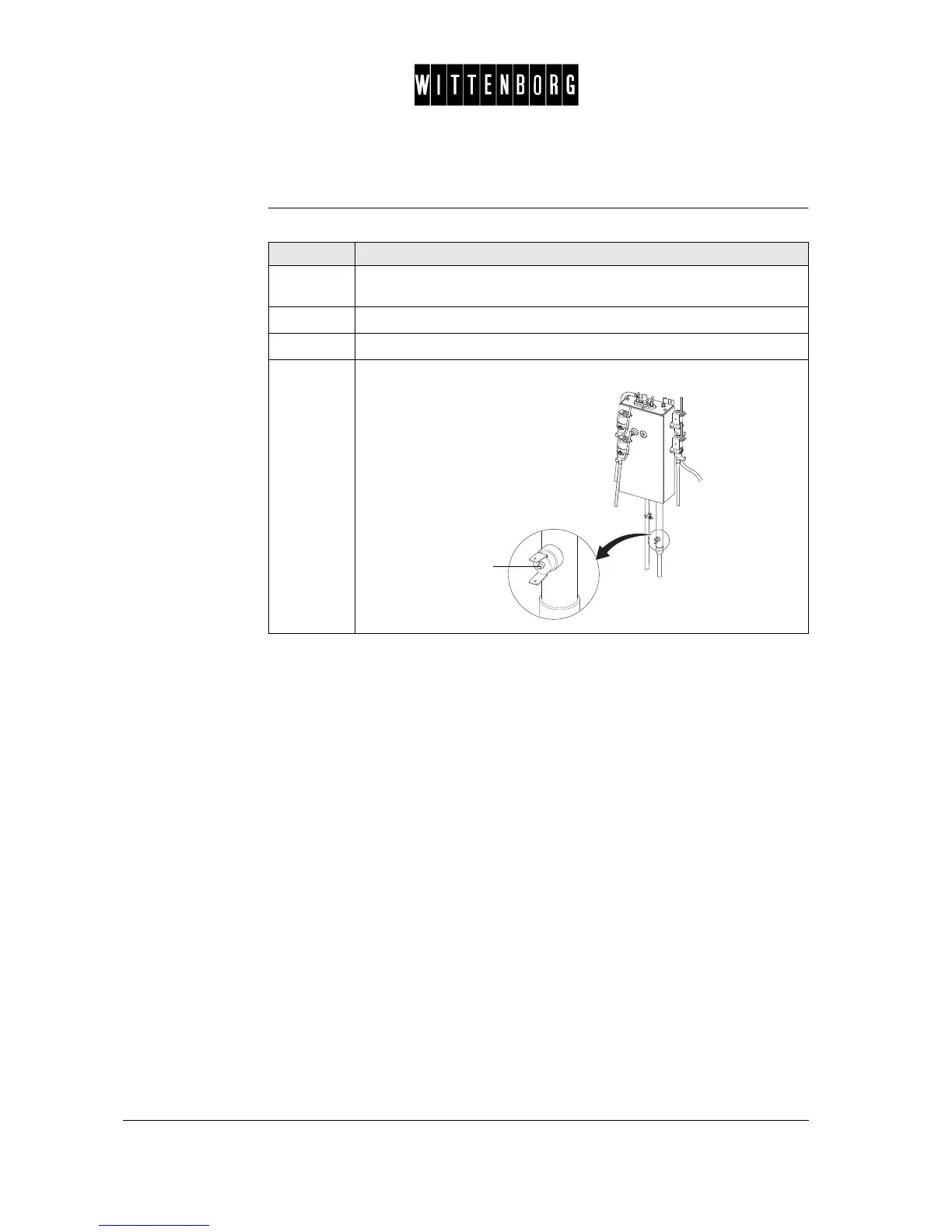

Press the reset button (1) at the boil over sensor:
