Dismounting/Repair Brewing SystemService Manual FB50/55/5100/5500
9.2.6Dismounting the Dosing Motor
When dismounting the dosing
motor, the scraper has to be in
the rear position.
● Remove the brewer housing.
● Disconnect the plug connection.
● Remove the two screws (1). (Fig. 1)
● Pull the dosing motor (2) backwards.
(Fig. 1)
● Remove the dosing motor.
Brewers are supplied with grey or
black base consoles (3). For brewers
with black base consoles (3) the
following has to be observed: When
the dosing motor stucks, check
whether the fastening of the base
console to the brewer base is
defective. In this case, press the
actuator against the brewer base.
There is a possibility that the
fastening domes were broken so that
the actuator slided from the brewer
base towards the top.

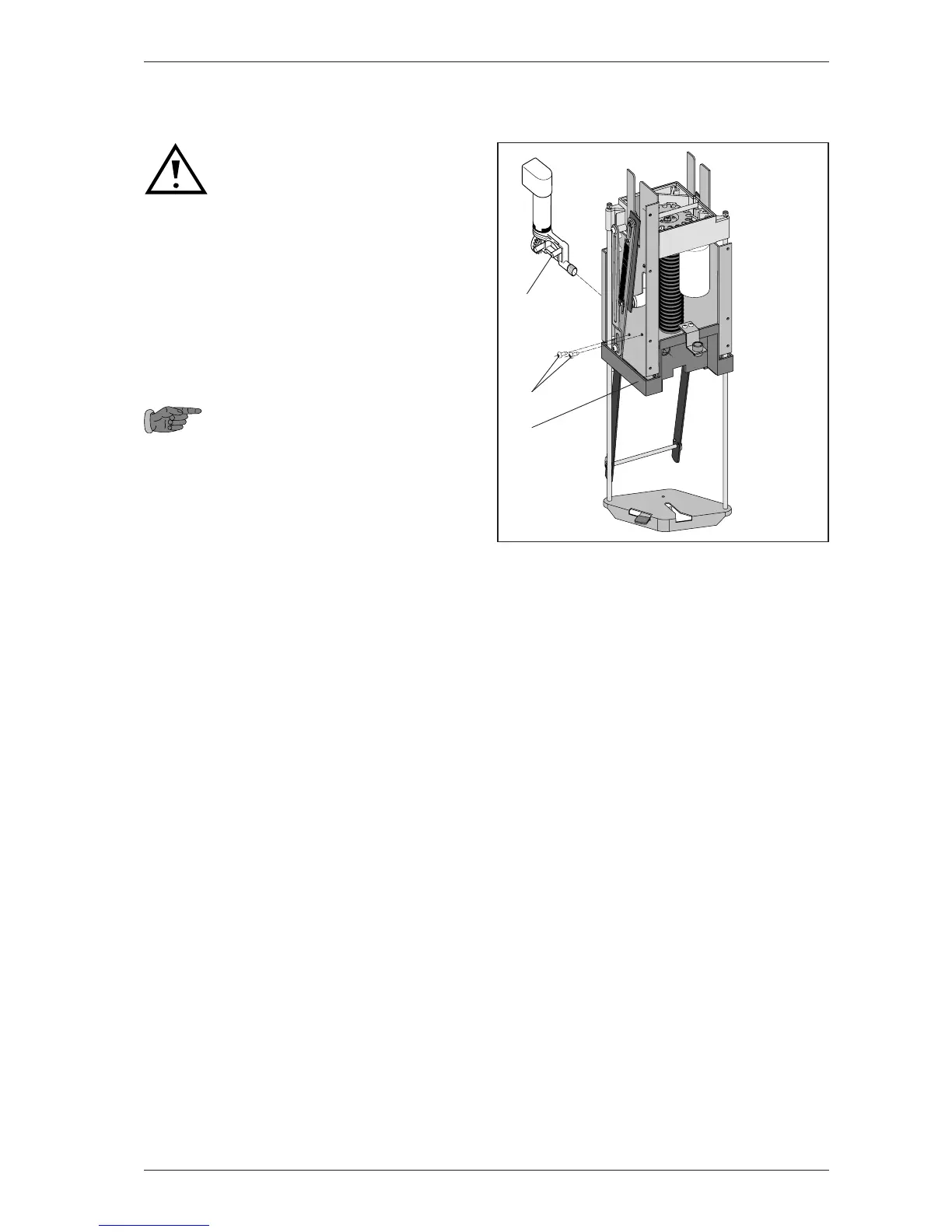

Fig. 1
2
1
3
