Wittenborg FB 5100 - Dismounting the Actuator Motor

November, 1998
15
Dismounting/Repair Brewing SystemService Manual FB50/55/5100/5500
Dismounting the actuator motor
● Disconnect the electrical connection (2 plug
connectors).
When mounting:
Ensure correct polarity.
With several dispensers, multiple-digit
numbers or roman numbers are printed
onto the stranded wire connections.
The higher number represents the
negative pole. (Fig. 2)
When using a new tachoboard, make
sure that rubber sleeves are applied to
the plug connections for the actuator
motor.
● Carefully remove the four screws of the
actuator motor (do not damage the
tachoboard disc).
Make sure not to lose the spacer
ring (8). (Fig. 2)
● Remove the actuator motor towards the
base, and simultaneously pull off the gear.
The gear remains inside the bearing
housing.

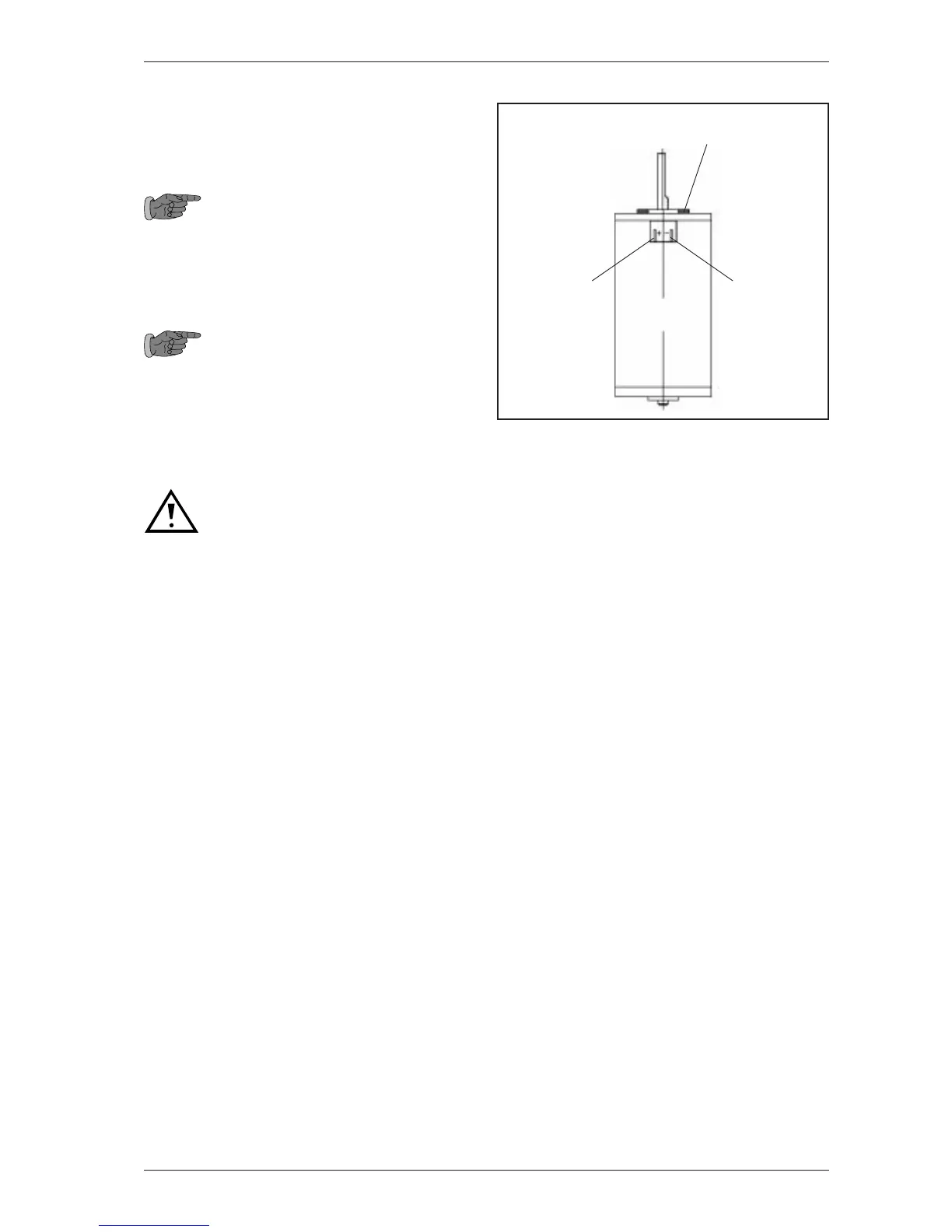

Fig. 2
+–
8
