Wittenborg FB 5100 - Dismounting the Spindle

November, 1998
17
Dismounting/Repair Brewing SystemService Manual FB50/55/5100/5500

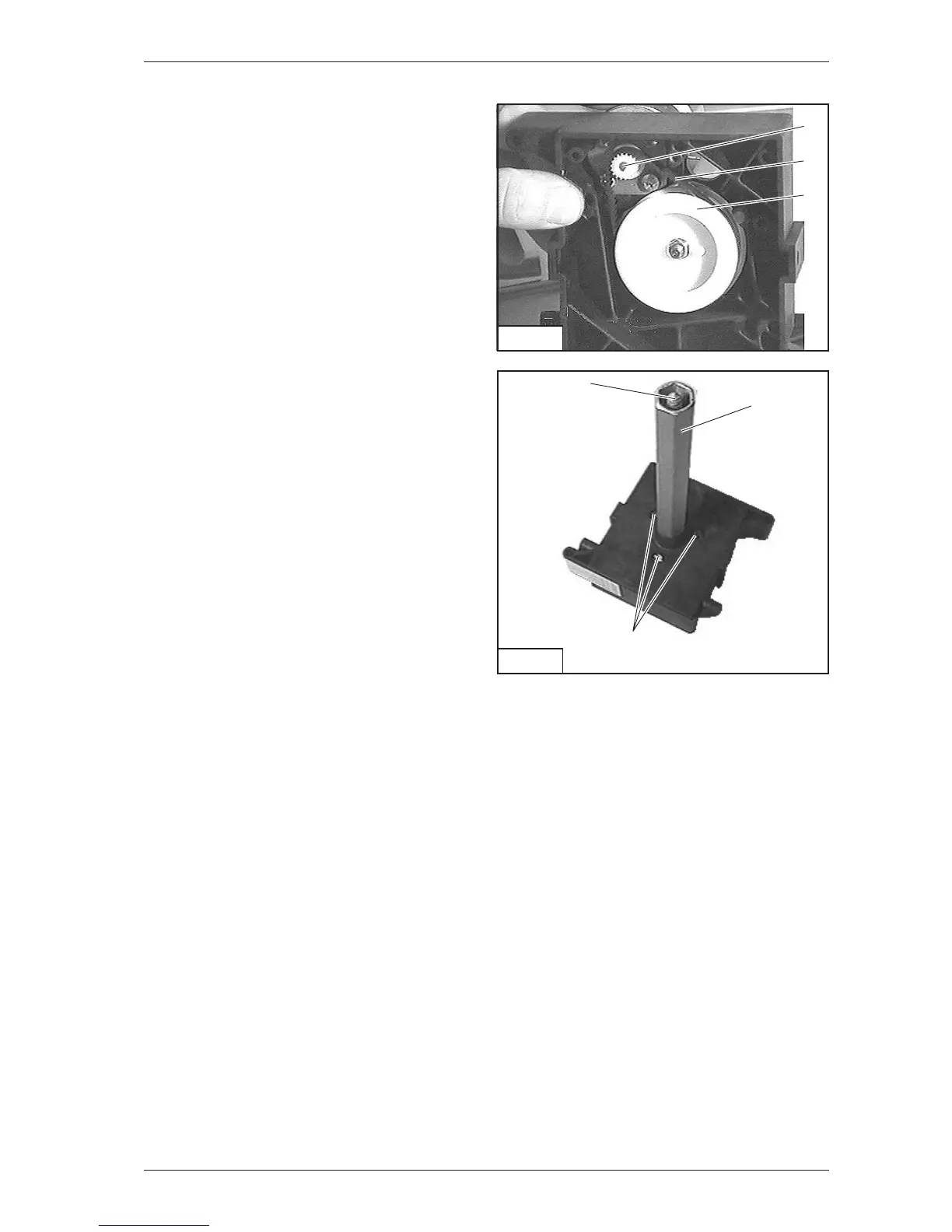

Fig. 5
● Now, the large gear wheel (7) with toothed
belt (8) and the small gear wheel (9) can
be removed consecutively. (Fig. 4)
● The actuator motor can be removed by
loosening the 4 fastening screws.
Dismounting the spindle
● Loosen the 3 fastening screws (10) at the
bearing housing. (Fig. 5)
● Press the spindle (11) slightly. Withdraw the
spindle together with bearing and washers.
(Fig. 5)
● Unscrew the outer tube (12). (Fig. 5)
Fig. 4
11
12
10
9
8
7
