November, 1998
18
Dismounting/Repair Brewing SystemService Manual FB50/55/5100/5500
Fig. 7
Fig. 8
Fig. 9
2
3
4
Fig. 6
1

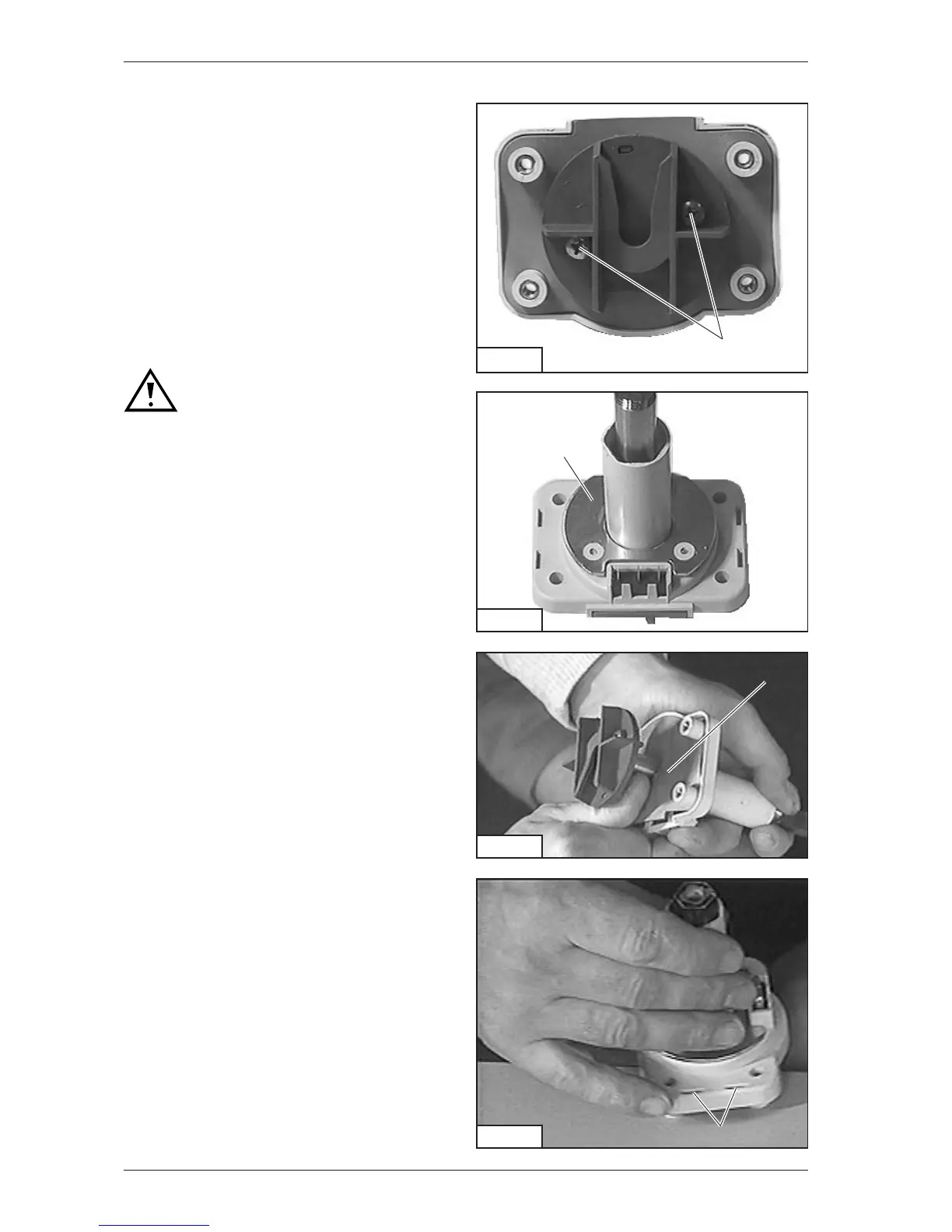

● For dismounting the bottom console,
unscrew the plunge holder (1). (Fig. 6)
● Remove the plate (2) from the bottom
console. (Fig. 7)
● Loosen the sealing (3) and press the inner
plate outside through the slots (4). A table
edge facilitates this process. (Fig. 8, 9)
● Loosen the two accessible screws and
withdraw the unit completely from the
bottom console.
When mounting the actuator it is
imparative to observe that
- the plunge holder opening,
- the flat side of the bottom
console and
- the actuator motor are in range.
