Dismounting/Repair Brewing SystemService Manual FB50/55/5100/5500

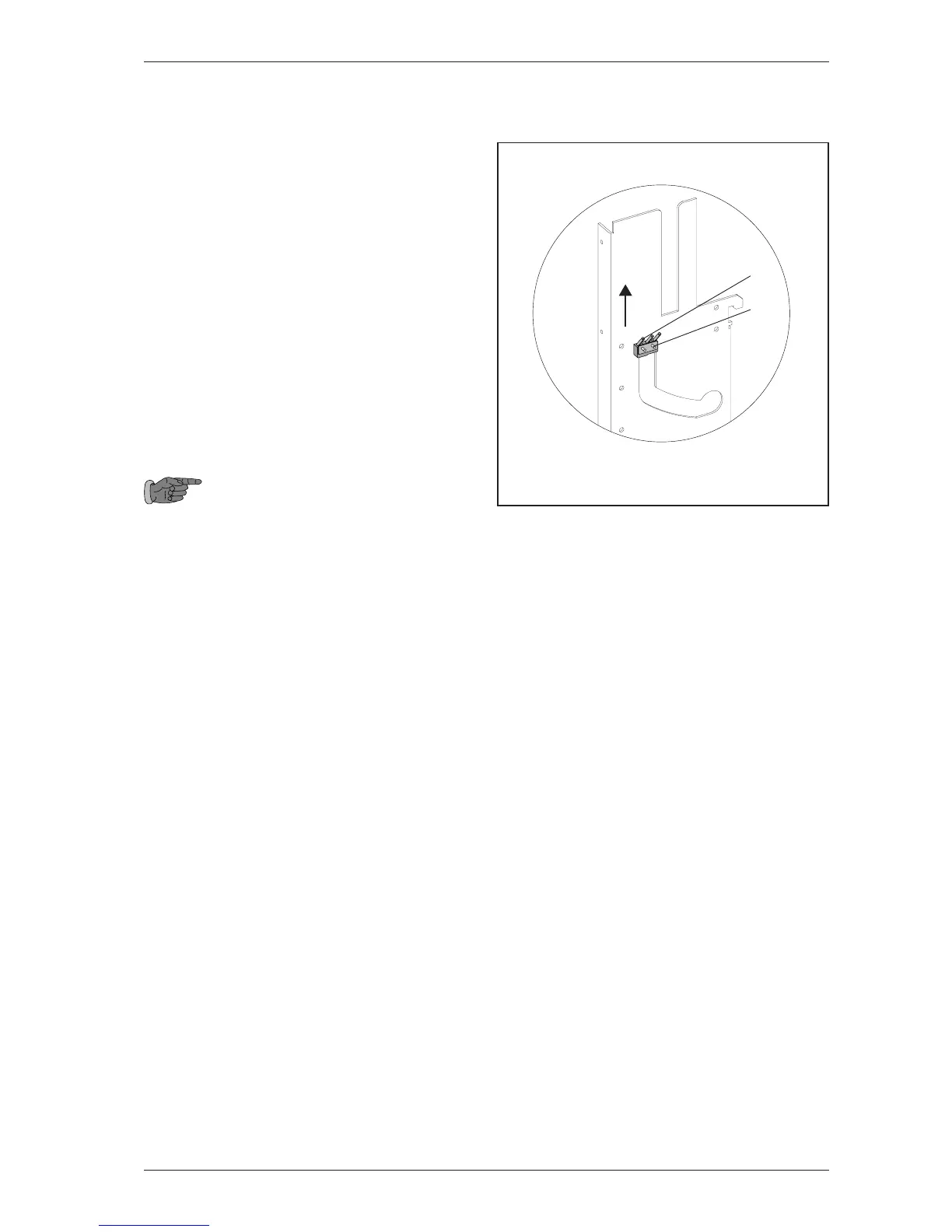

Fig. 1
2
1
9.2.12Dismounting/Mounting the Microswitch BSSW
● In case of replacement, dismount the
brewer unit according to section
"Dismounting the Brewer Unit".
● Remove the fastening screws (1) and the
threaded plate of the microswitch (2) and
replace the switch. (Fig. 1).
● Unplug the cable lugs of the defective
microswitch, and connect them to the new
microswitch. Make sure that the insulation
hose is positioned correctly. (Fig. 1).
● Fasten the new microswitch (2) by means
of the screws (1), washers, and nuts to the
brewer housing. (Fig. 1).
Observe that the screws are not fastened
too tight.
Horizontally place the microswitch into
the 3 mm holes in the highest possible
position.
