Dismounting the espresso water system
Warnings • Before any repair is carried out, the main plug must be withdrawn from
the main supply!
• Only carry out this repair when the machine has cooled down!
Procedure Follow these steps to dismount the espresso water system:

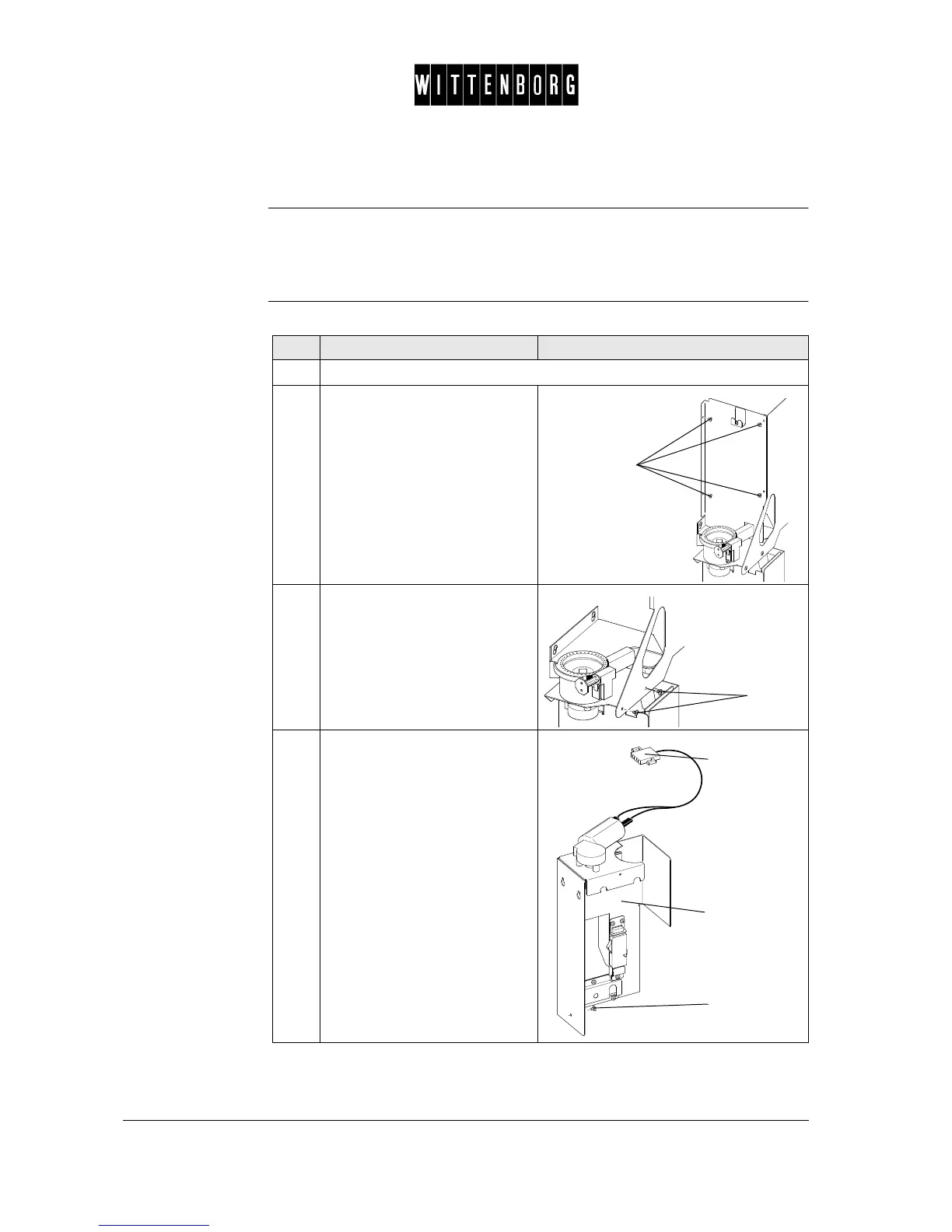

Step Action Illustration
1.
Remove waste bucket, coffee bean canister and espresso brewer.
2.
Remove four screws (1) to re-
move water system cover.
3.
Remove two screws (1) and dis-
connect electrical connection to
dismount bracket for grinder.
4.
Disconnect cable connection (1)
and remove screw (3) to dis-
mount bracket for espresso
brewer (2).
1
1
3
1
2
