Dismounting/Repair Brewing SystemService Manual FB50/55/5100/5500
9.2.2Safety Instructions
Installation and repair works on the
dispenser may only be carried out
by trained service technicians.
General Mounting Instructions
Mounting the scraper guide

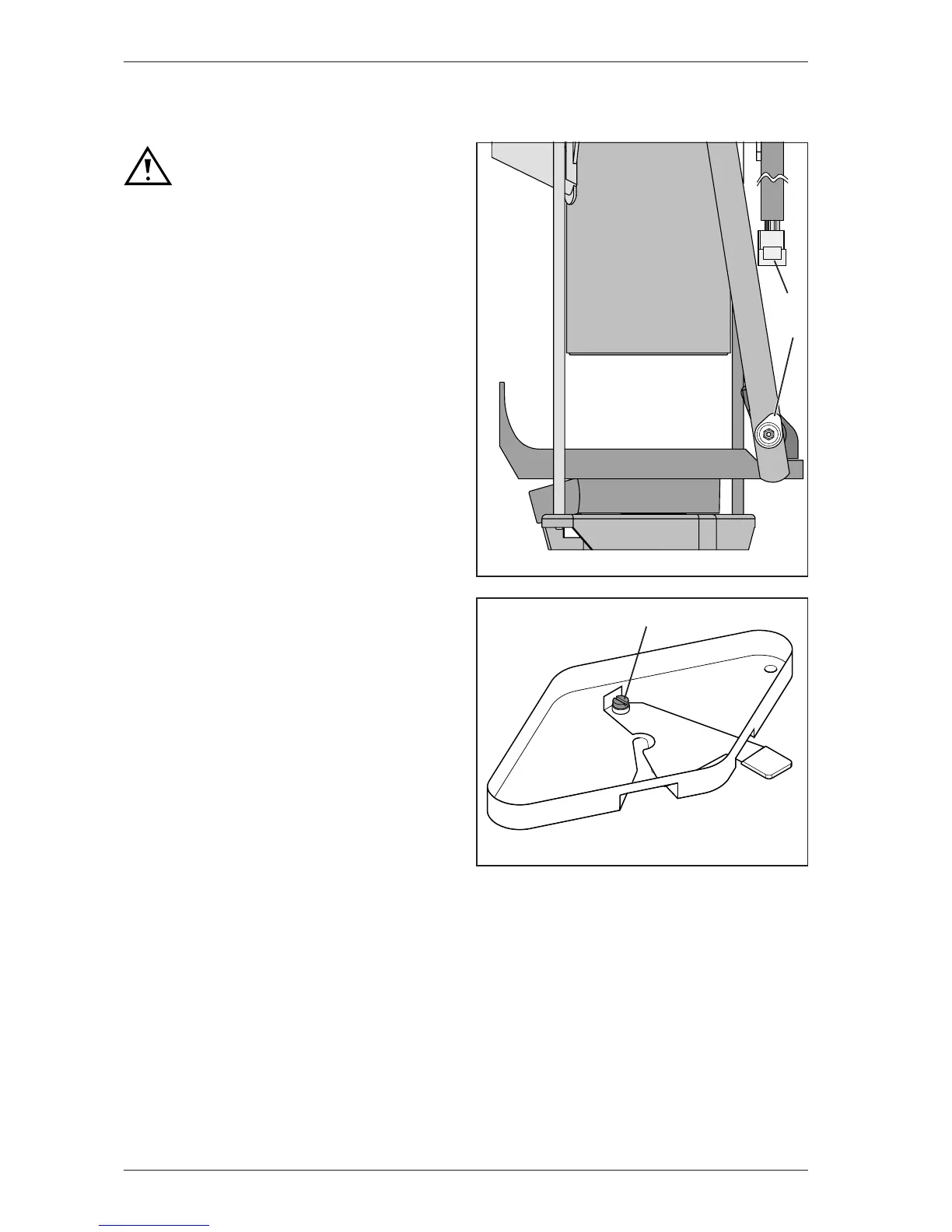

● When mounting, the guiding lugs (1) have
to point towards the brewer‘s fastening
holes and the cable harness (2). (Fig. 1)
Mounting the support
● When replacing, the screw (3) has to be
fastened by means of Loctite. (Fig. 2)
Fig. 1
Fig. 2
3
2
1
