Dismounting/Repair Brewing SystemService Manual FB50/55/5100/5500
9.2Dismounting
9.2.1Dismounting Parts of the Brewer / Components of the Brewer

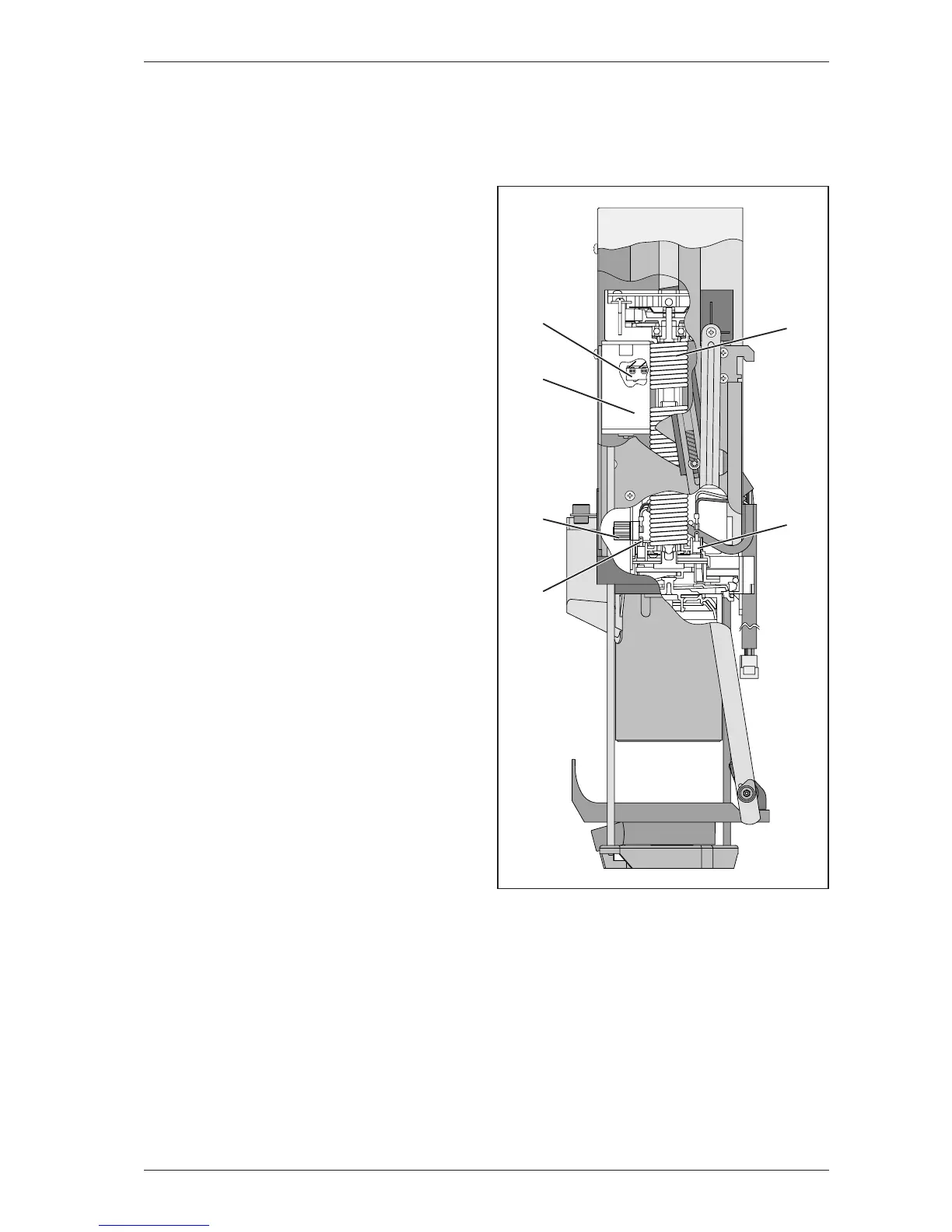

Fig. 1
5
6
1
2
3
4
Legend for fig. 1:
1 Safety switch switches as soon as the
brewer moves beyond
the closing position.
E.g. sealing of the filter
plate, filter plate, or
brewer cylinder not
installed.
2 Actuator motor drives the actuator,
controls the brewing
process.
3 Dosing motor drives the dosing unit,
controls the product
quantity.
4 Brewer Closed Switch switches as soon as the
brewer cylinder and the
filter plate form a
chamber.
5 Actuator controls the functions of
the filter plate, the
plunger and the scraper
during the brewing
process.
6 Brewer At End Switch switches on both end
positions of the brewer,
e. g. scraper in end
position or lower
plunger position.
