Dismounting/Repair Brewing SystemService Manual FB50/55/5100/5500
The following description is valid for
FB55. The safety cut-off device for the
brewer has to be carried out according
to the type of brewer (refer to the
corresponding service manual).
Furthermore, if necessary the removal
of the outlet has to be performed in
accordance with the specific dispenser.
When working on the brewer unit be
aware of sharp edges. There is a risk
of being injured.
● Open the left door.
● Remove the product container.
The safety cut-off device of the
brewer is put out of function when
pressing the safety switch. Keep
your clothing and your hands clear
of the dispenser. There is a risk of
being injured.

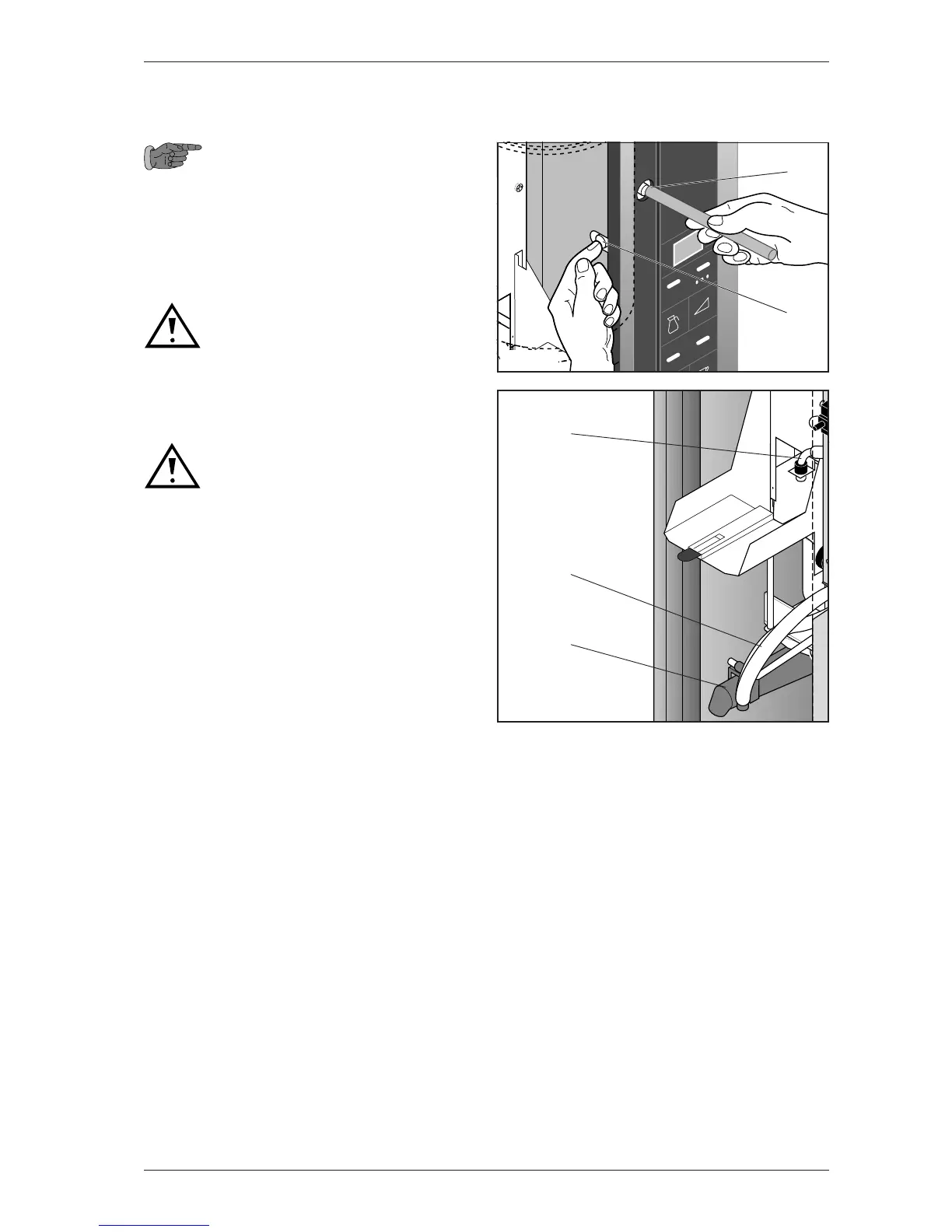

● Press the safety switch (1) by means of the
special tool, and simultaneously press the
rinsing button (2) through the opening in
the right door, and keep them pressed until
the brewer cylinder has closed completely
(fig. 1).
The brewer is now in transport position.
● Unlock the outlet (5) and tilt it upwards
(fig. 2). When re-installing, make sure that
the outlet is locked into place.
● Remove the coffee grounds container and the
drip tray.
● Switch off the mains switch, disconnect the
power supply, and close the water cock.
● Pull off the hot water hose (4). (Fig. 2)
● Remove the angle of the water inlet for the
brewer (3) from the brewer, and push it to
the side. (Fig. 2)
9.2.3Dismounting the Brewer Unit
Fig. 2
3
4
5
1
2
Fig. 1
