Dismounting/Repair Brewing SystemService Manual FB50/55/5100/5500

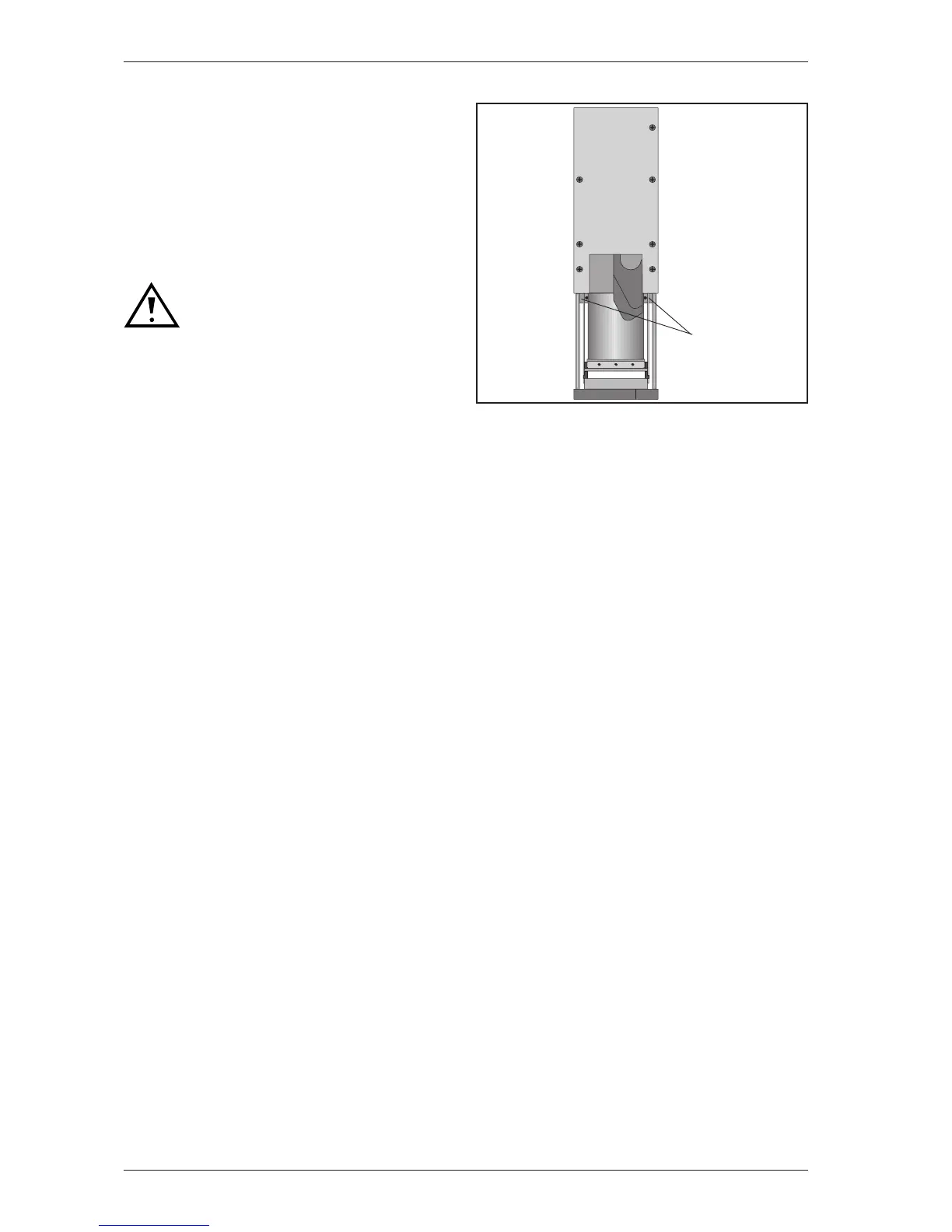

Fig. 3
6
● If necessary, remove the filter plate, the
scraper, and the brewer cylinder.
● Remove the two screws (6). (Fig. 3)
● Disconnect the 15-pole plug.
● If necessary, mount the filter plate, the
scraper, and the brewer cylinder.
If it was not possible to move the brewer
into transport position, only touch the
brewer on its outside. Do not reach
underneath the brewer cylinder, as there
is a risk of injuries if the actuator is
defective.
● Take the product console, lift the brewer
and pull it out of the support towards the
front.
● If necessary, disconnect the ground cable
from the brewer housing.
