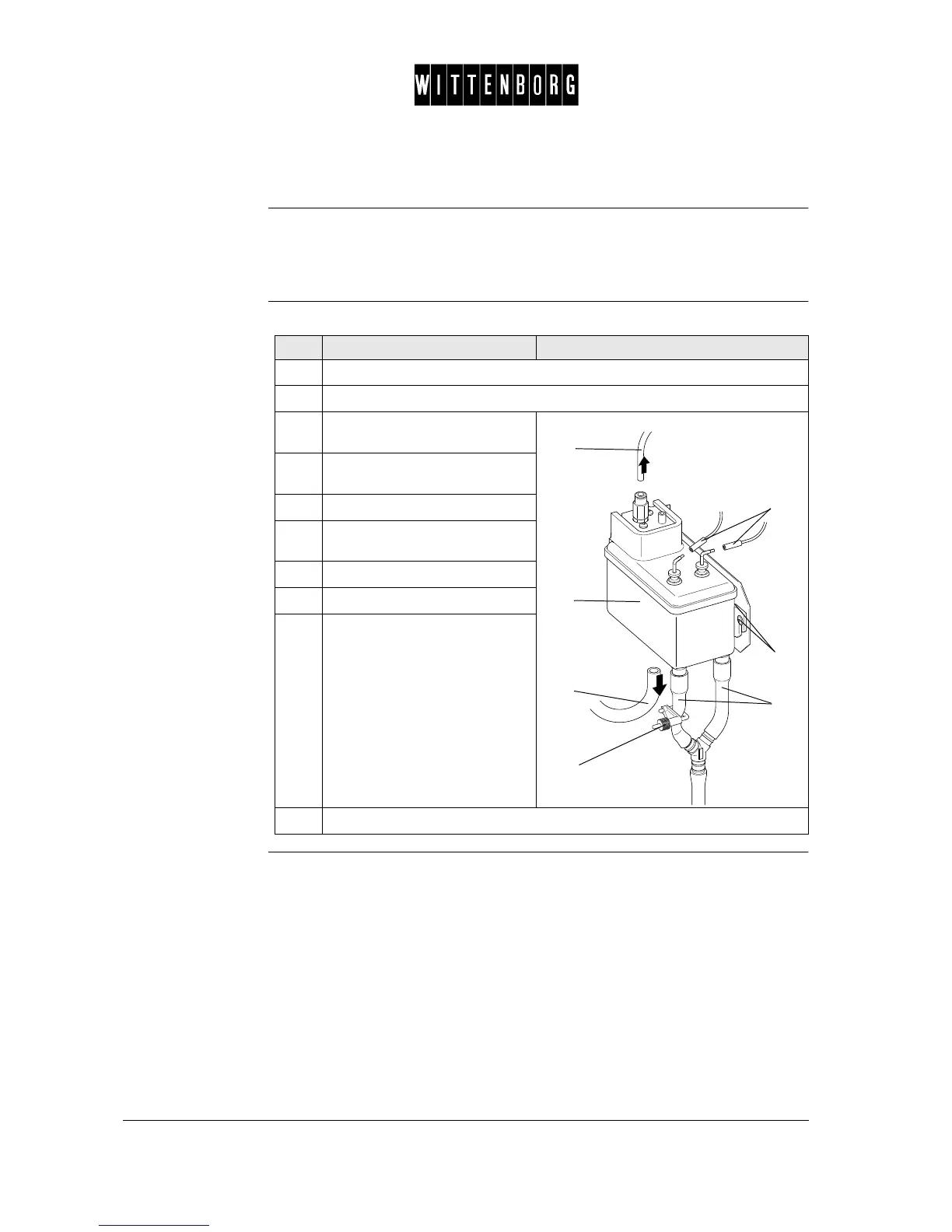

Replacing the break tank
Warnings • Before any repair is carried out, the main plug must be withdrawn from
the main supply!
• Only carry out this repair when the machine has cooled down!
Procedure Follow these steps to replace the break tank:
Step Action Illustration
1.
Remove waste bucket, coffee bean canister and espresso brewer.
2.
Dismount water system.
3.
Remove hose clamp (1) to
empty break tank.
4.
Disconnect cable connections
(2).
5.
Remove water inlet hose (3)
6.
Remove hose from break tank
to flowmeter (4).
7.
Remove overflow hoses (5).
8.
Loosen two screws (6).
9.
Dismount break tank (7).
10.
Install new break tank and reassemble in reverse order.
3
1
6
2
4
5
7
